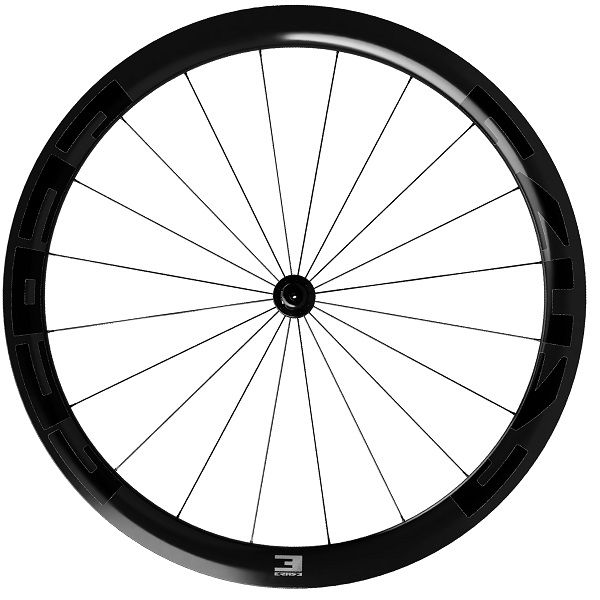

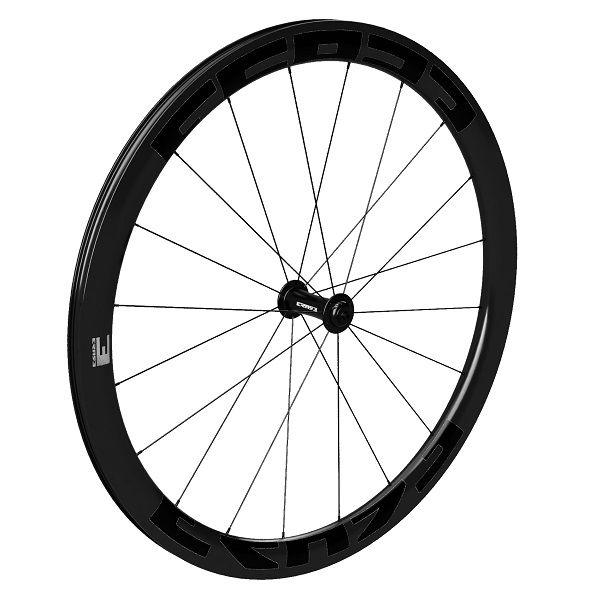

Carbon R45 Wheels

Main informations

Weight (gr)
Depth (mm)
Inner width (mm)
Price (€)

Tech informations

- Rims : ERASE rims (made from Toray T700 carbon fibers)
- Hubs : ERASE hubs
- Spokes : Sapim Cx-Ray (made from stainless steel)
- Nipples : Sapim Polyax (made from aluminium)

The front hubs are in 100xQR..

The rear hubs are in 130xQR.

Wheels pair : 1475gr.

The wheels are handbuildt with 20 radial front Sapim Cx-Ray spokes and 24 two-times crossed rear Sapim Cx-Sprint spokes.

The wheels are built by hands and we take as much time as needed.
We tighten the spokes to an average 900N front and 1200N rear +- 5% tension on each spoke.
We true the wheel until the lateral movement is less than 0.05mm, the radial movement is less than 0.25mm.

No matter what !

*We use PKLie truing stands and WheelFanatyk tensiometers.

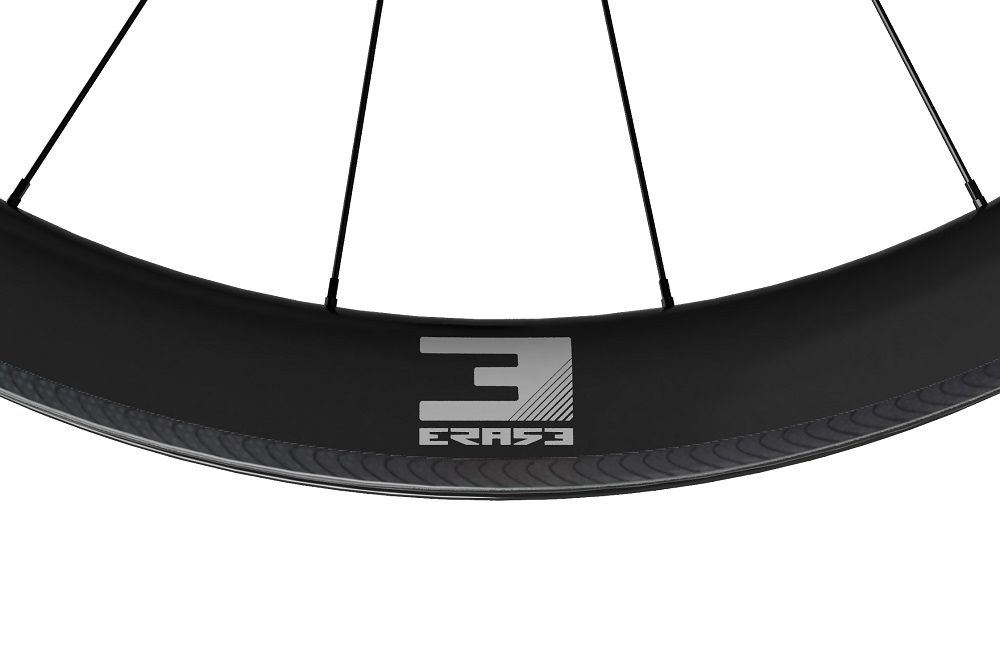

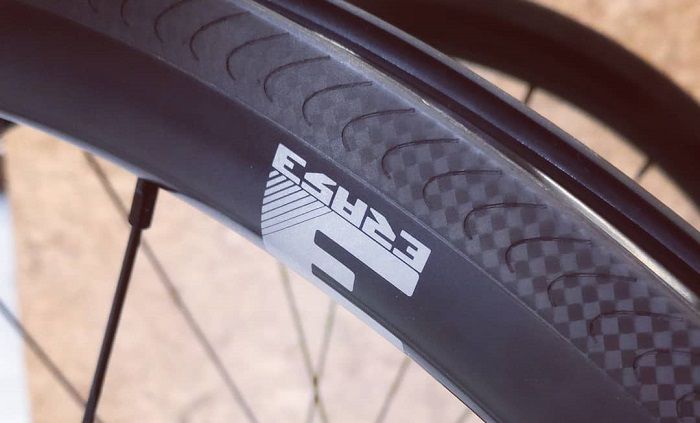

The braking surface of our rims is made with graphene. It gives a greater resistance to overheating by reducing heat accumulation during heavy braking.
It's also grooved. It gives a better heat dissipation, a stronger braking and helps to evacuate moisture.
It's probably the best carbon braking surface you can have for now.

The wheels are delivered with tubeless tape and valves.
You just need to put your tubeless or tubetype tires on, inflate and ride.

The hub geometry is a very important point of a hub design. It defines the spokes lenght, but more importanly the wheel lateral rigidity. Further is the flange from the hub center, higher is the lateral stifness. Therefore, the wheel will be nervous and have accurate trajectories.

- Rims : Taiwan
- Hubs : Belgium
- Spokes : Belgium
- Nipples : Belgium

Colored nipples : free.

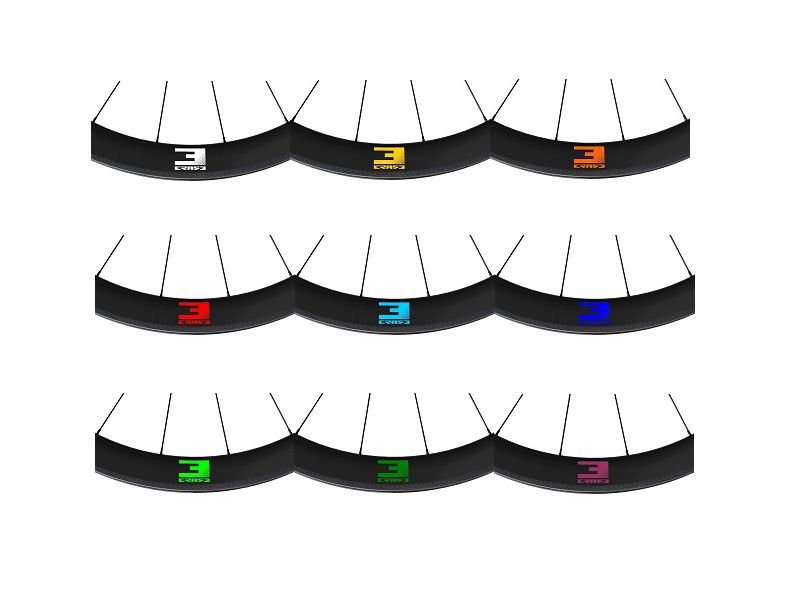

Colored valve decals : 20€.
Black spokes tying : 30€.

Our wheels get a LIFETIME warranty.

- The warranty covers only product defaults.
- The warranty does not cover damage or failure caused by crash, misuse of the products, normal wear (bearings, tubeless accesories, decal, ...) and improper assembly or maintenance by an unauthorized dealer.

Only for the initial owner.


If you got in a crash, it can happen, we offer you a crash replacement program.

- You can get a new rim with a 30% discount.
- Handbuilding is free.
- Spokes or nipples, if damaged, and shipping fees are not covered.

Only for the initial owner.

*Carbon R45 rim price with the 30% discount : 285€.
