MTB Hubs

Main informations

382
Weight (gr)
60
Engagement points
6900
Enduro Bearings series
350
Price (€)

Tech informations

The hubshells, axles and caps are made from 7075T6 aerospace aluminium.

The entire freewheel is made from Grade 5 titanium.

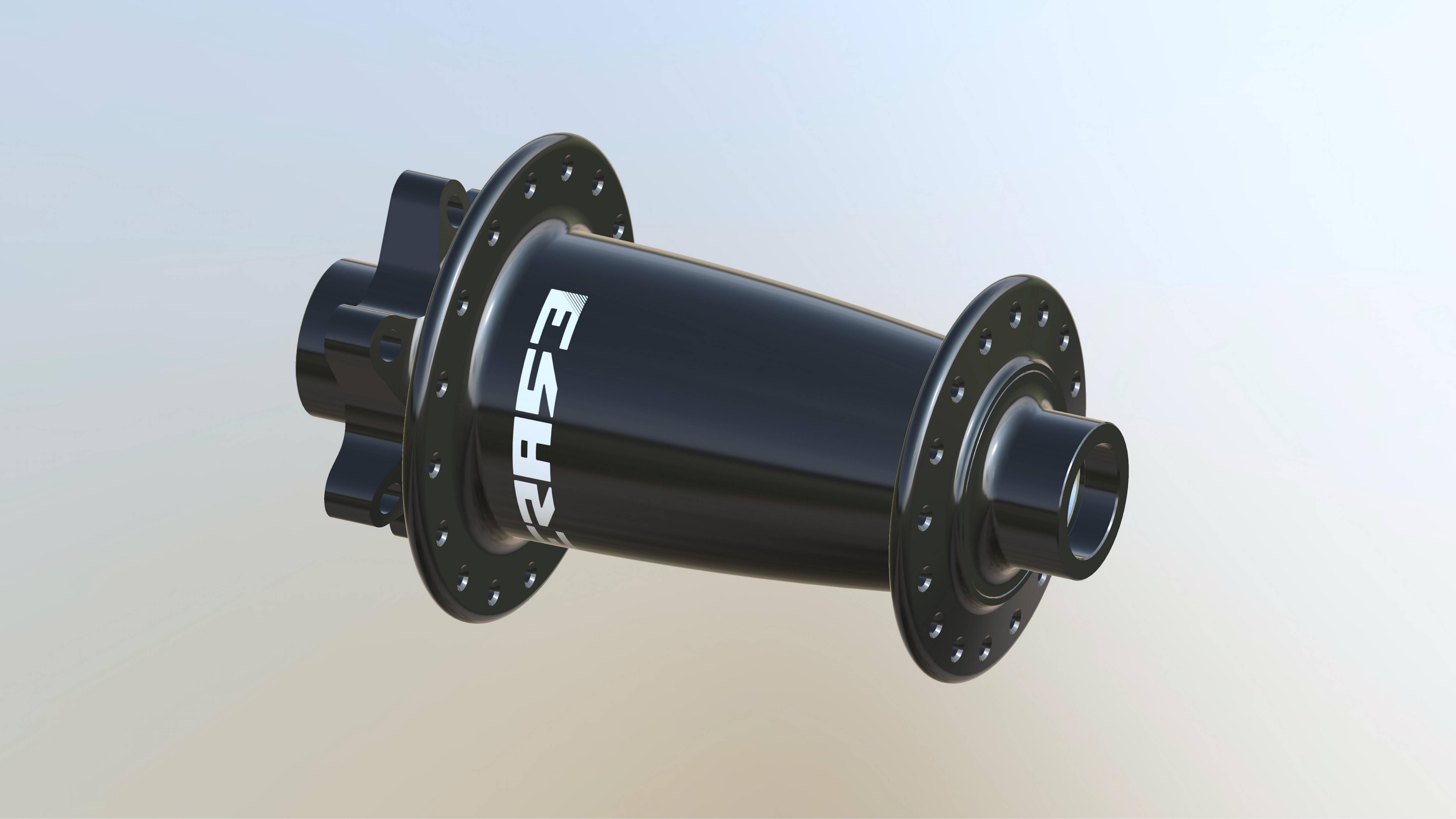

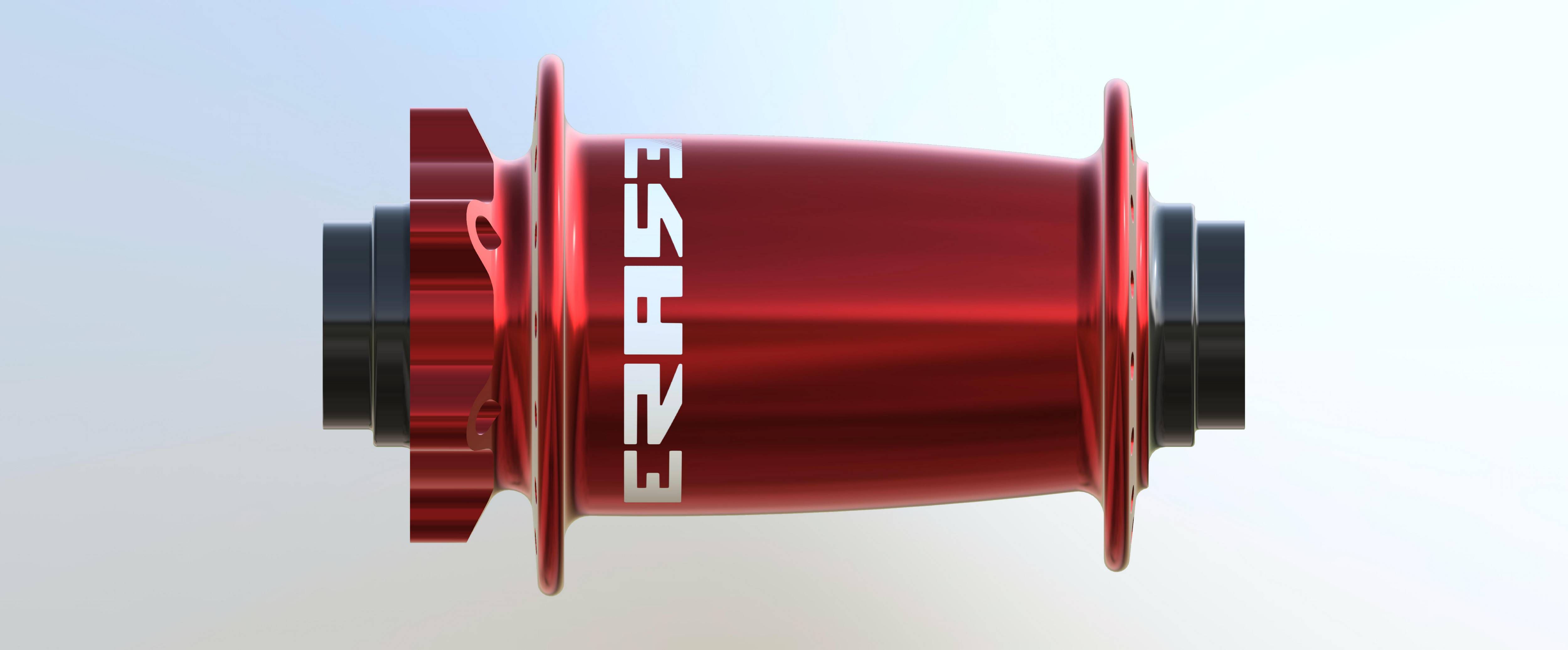

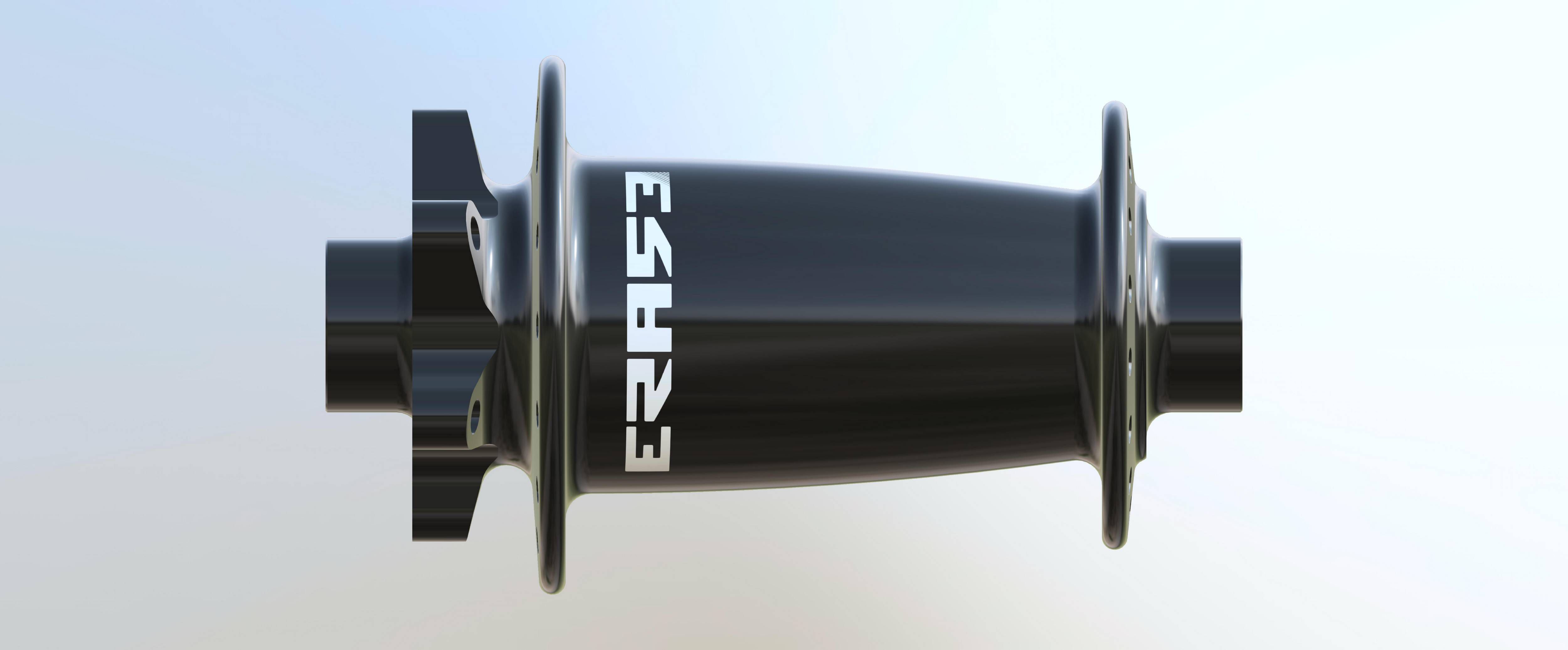

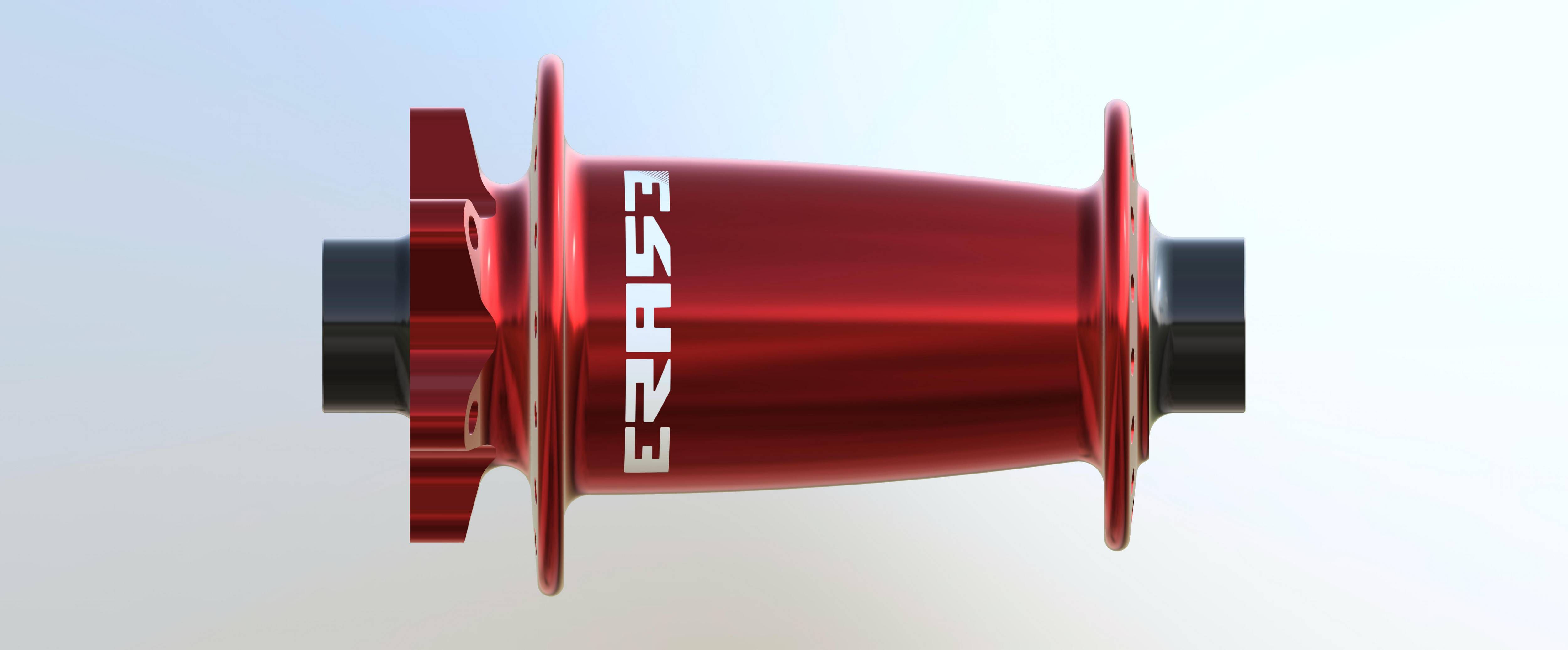

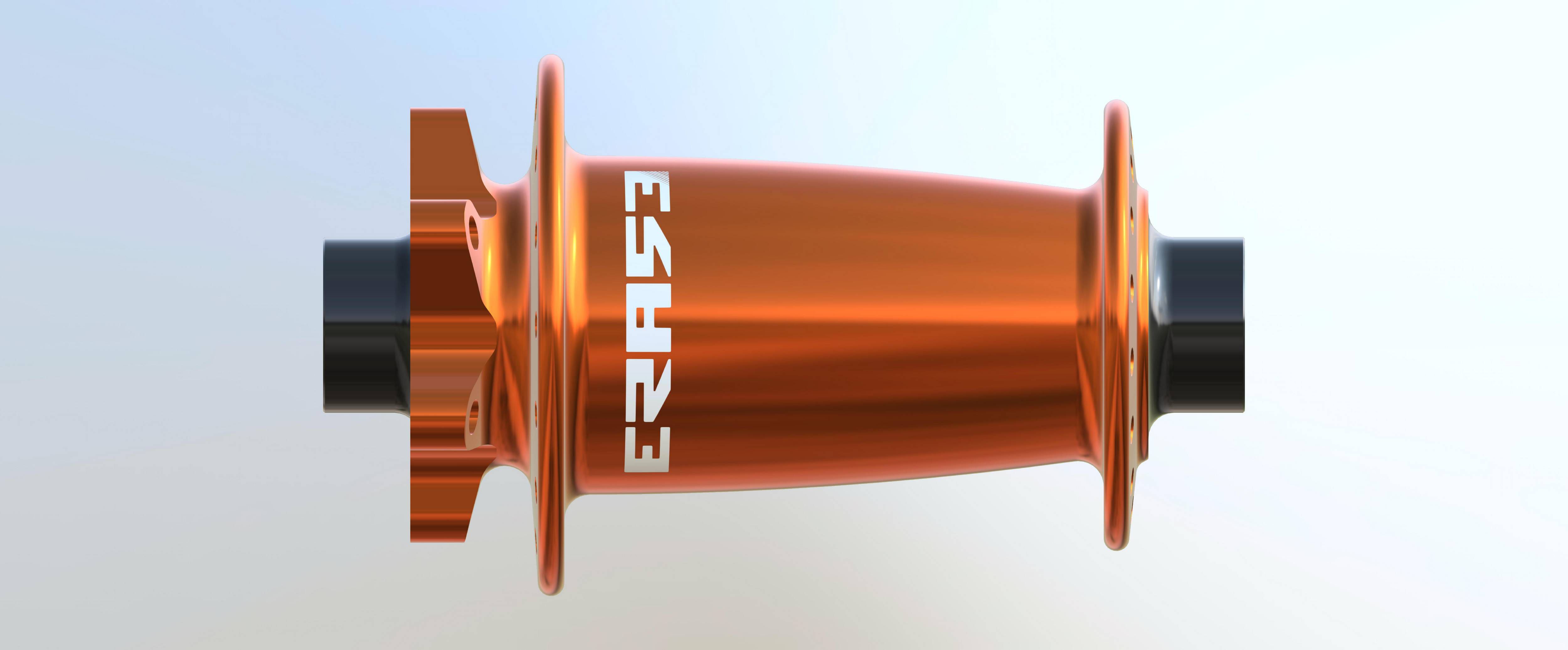

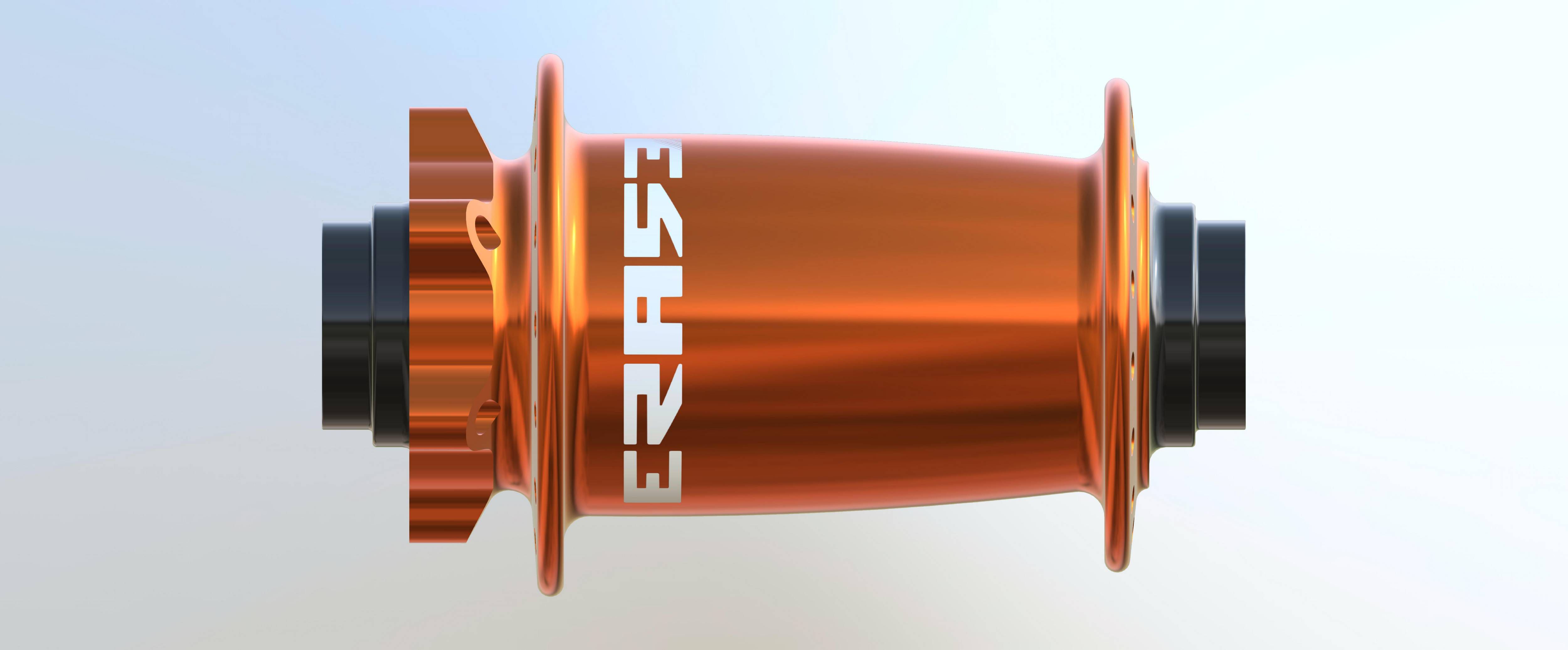

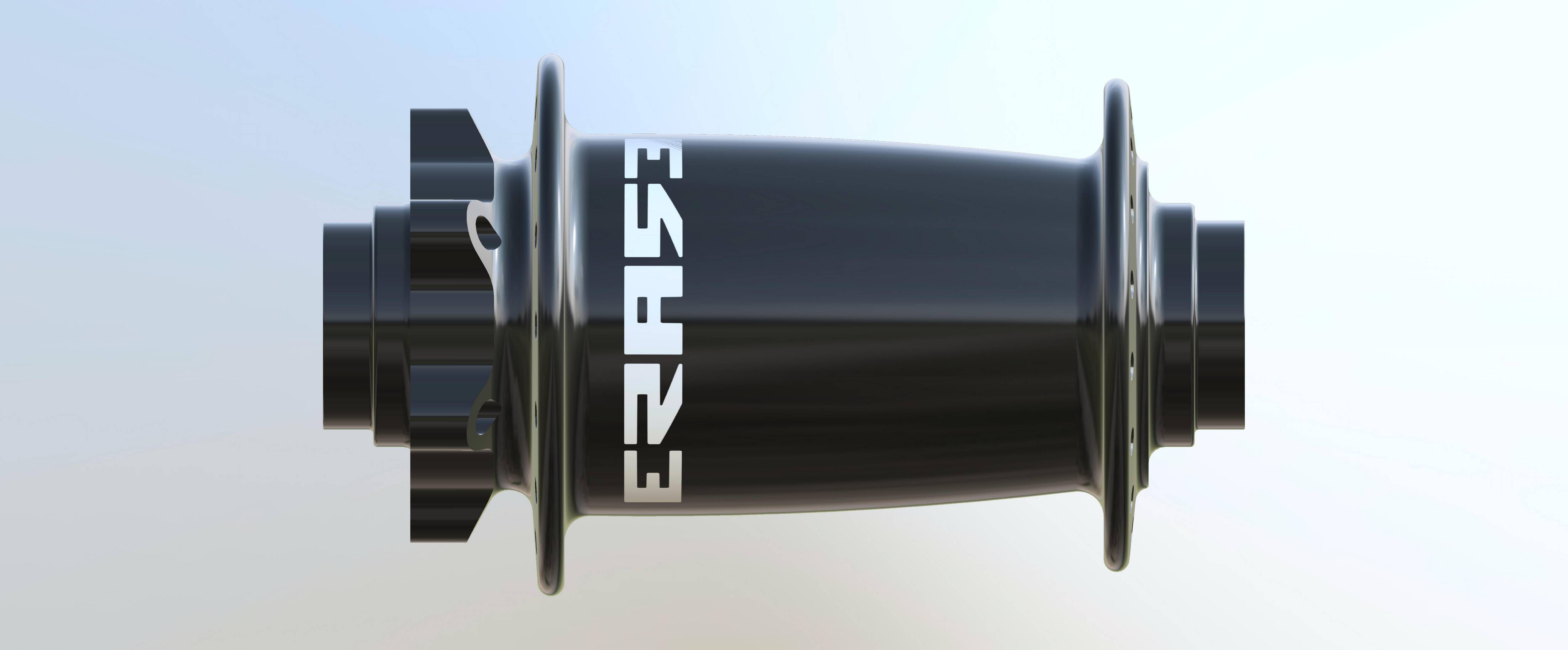

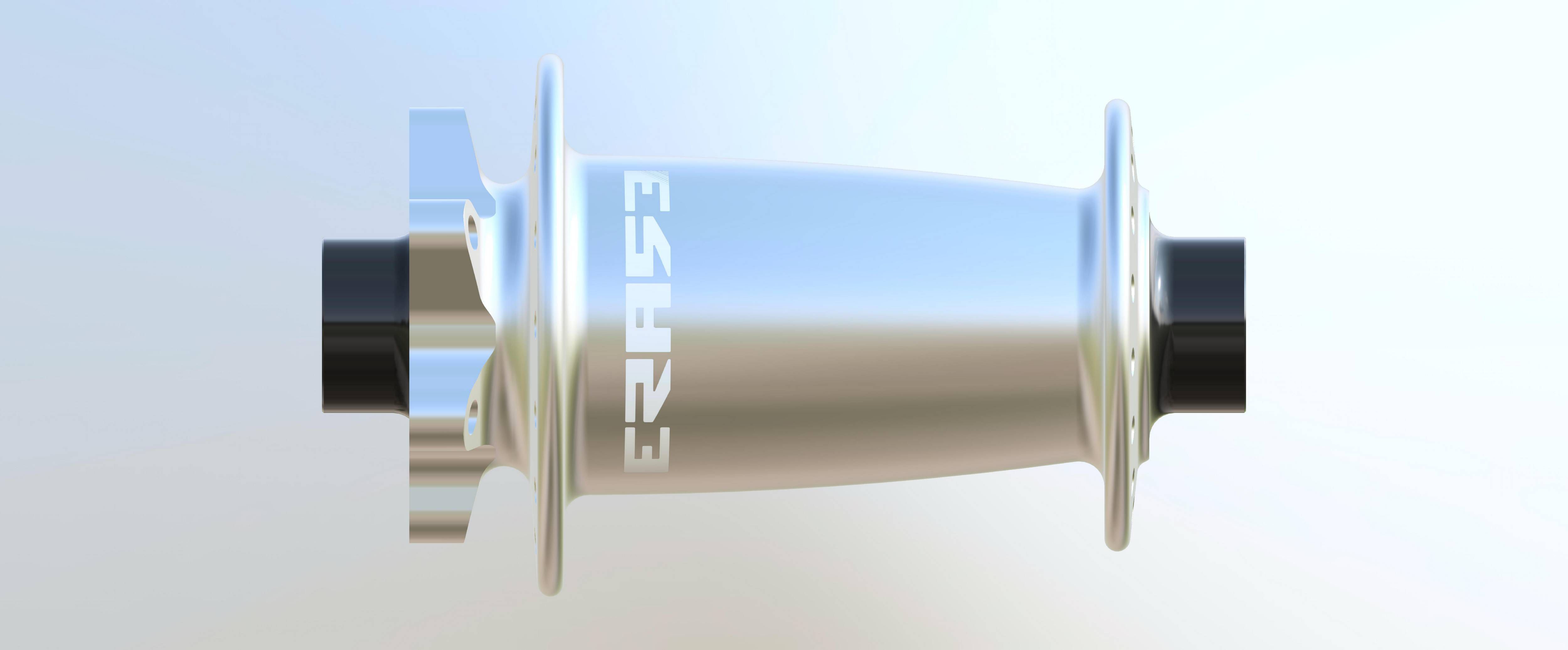

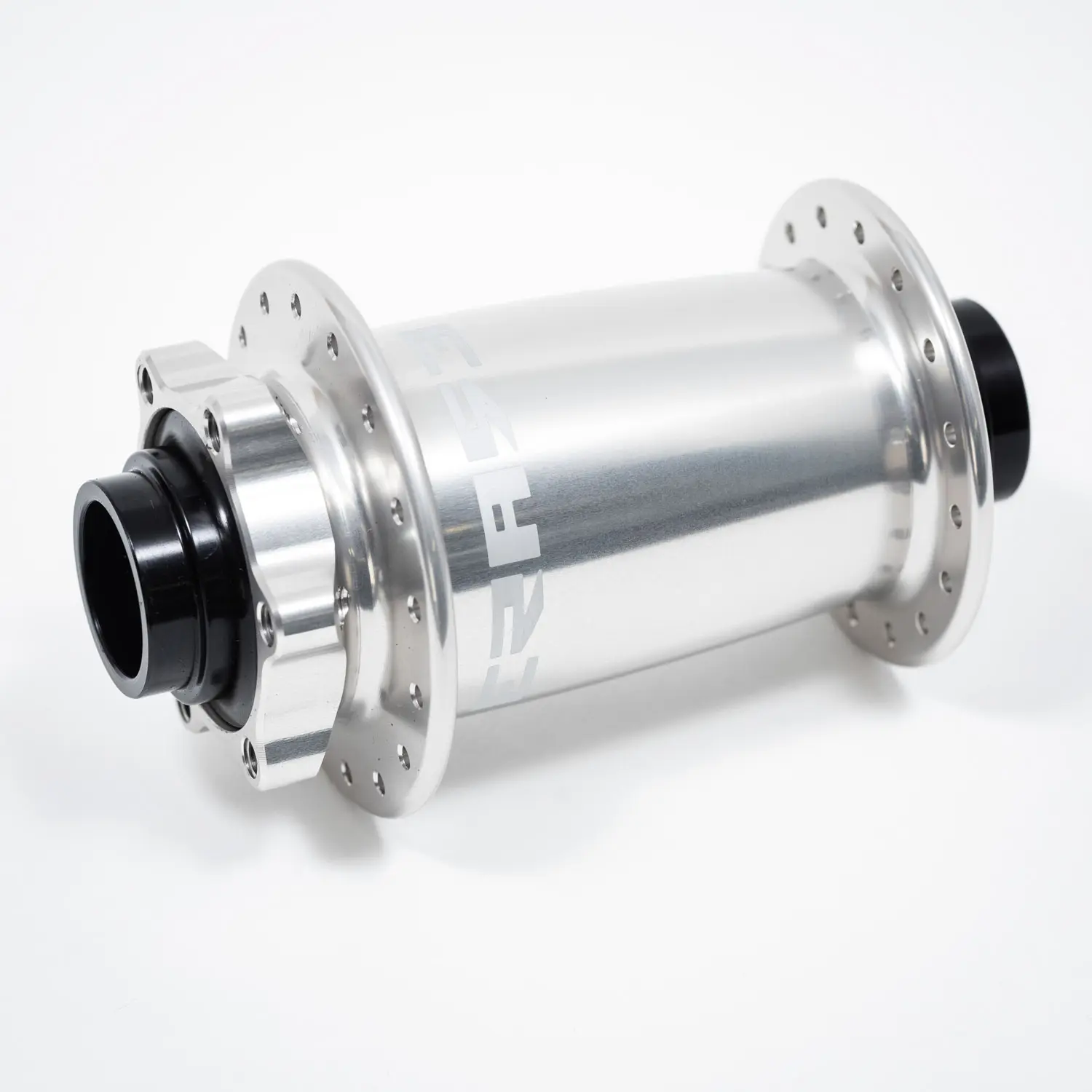

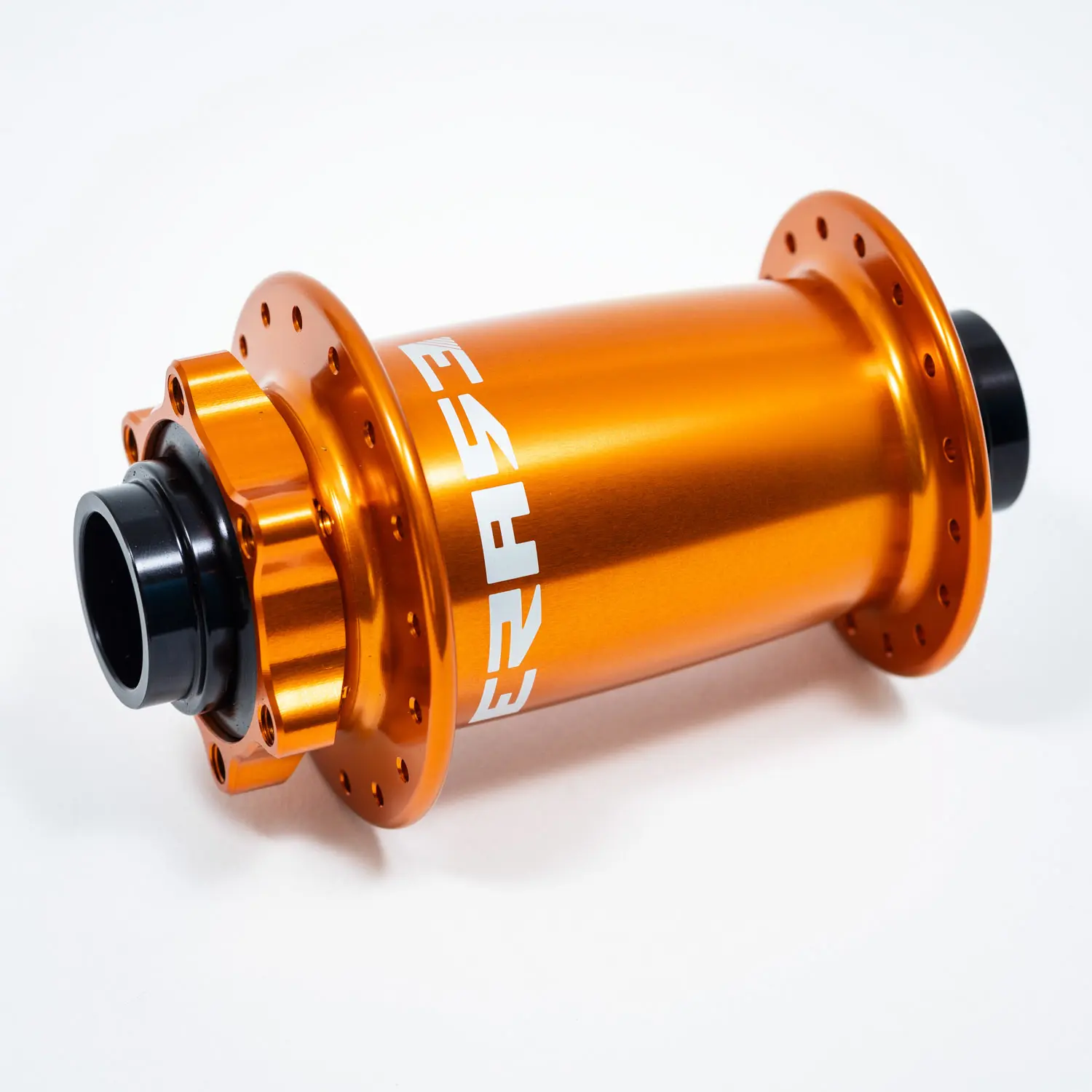

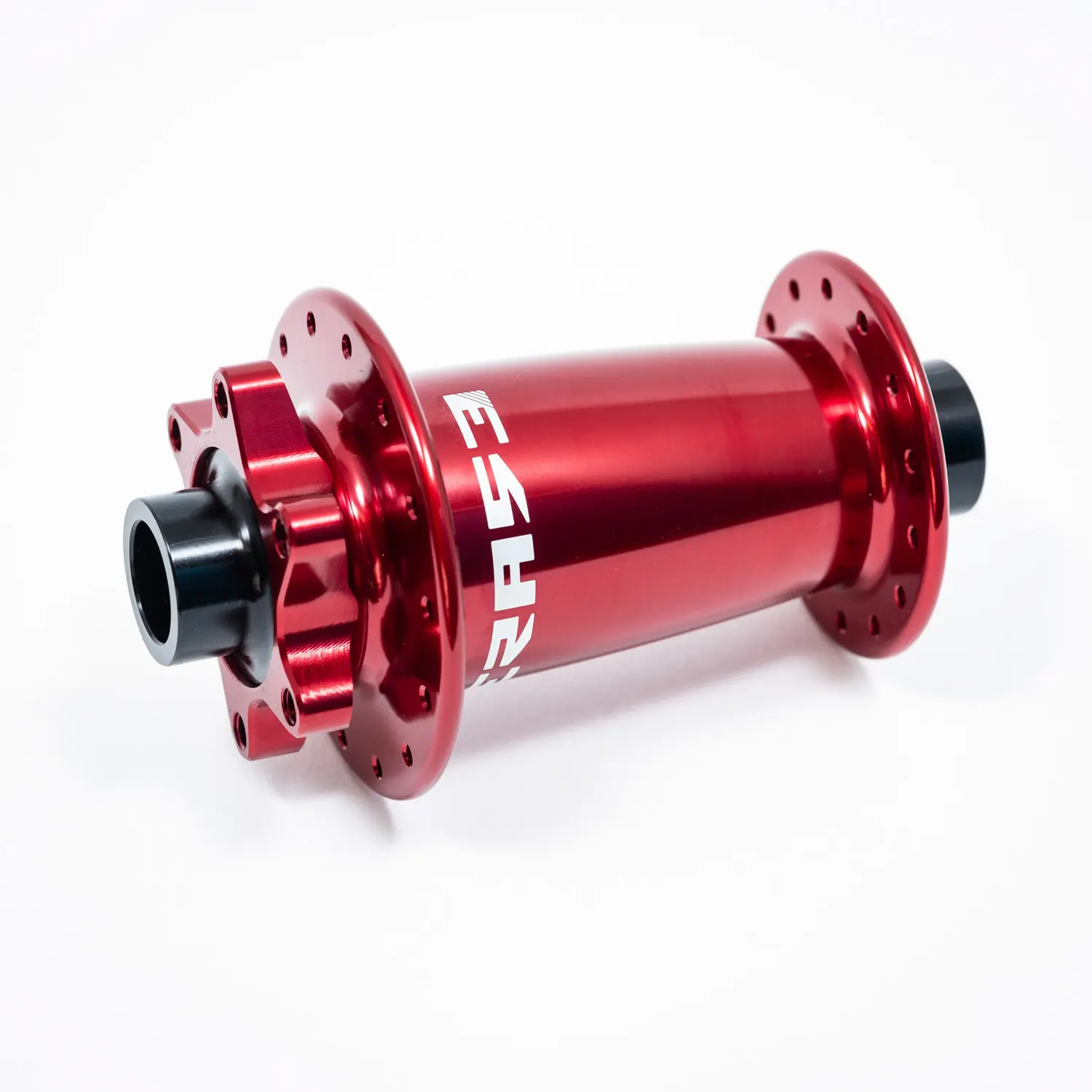

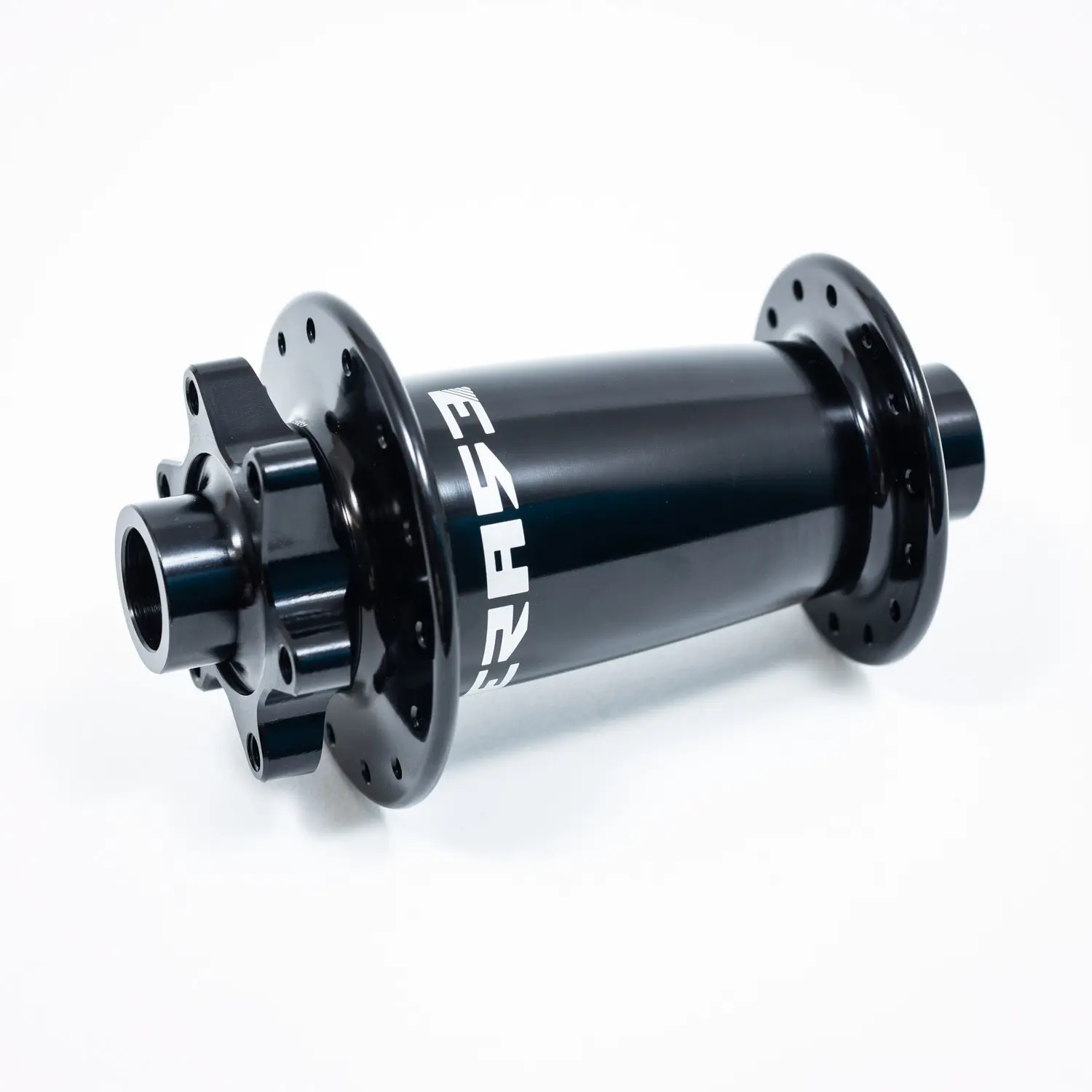

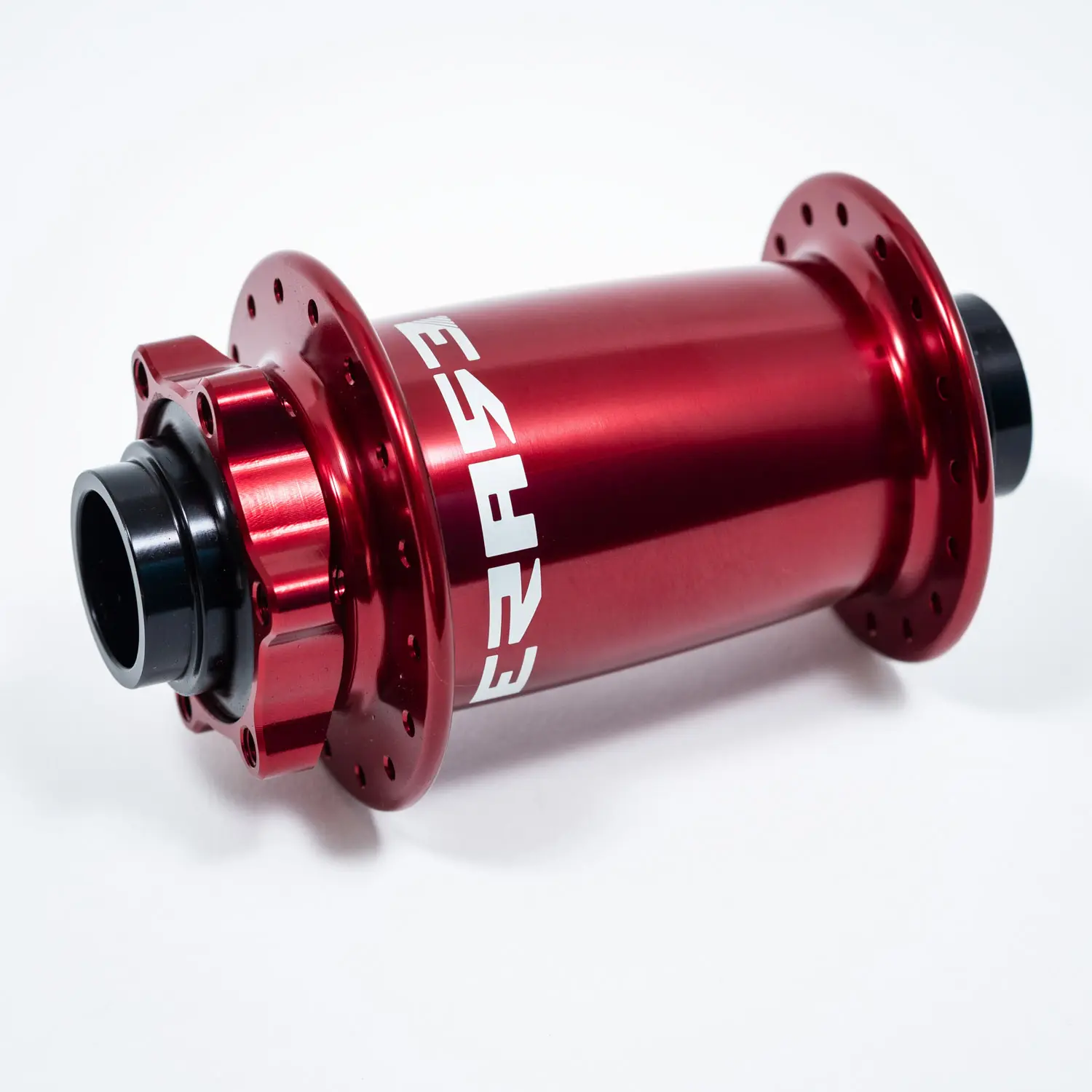

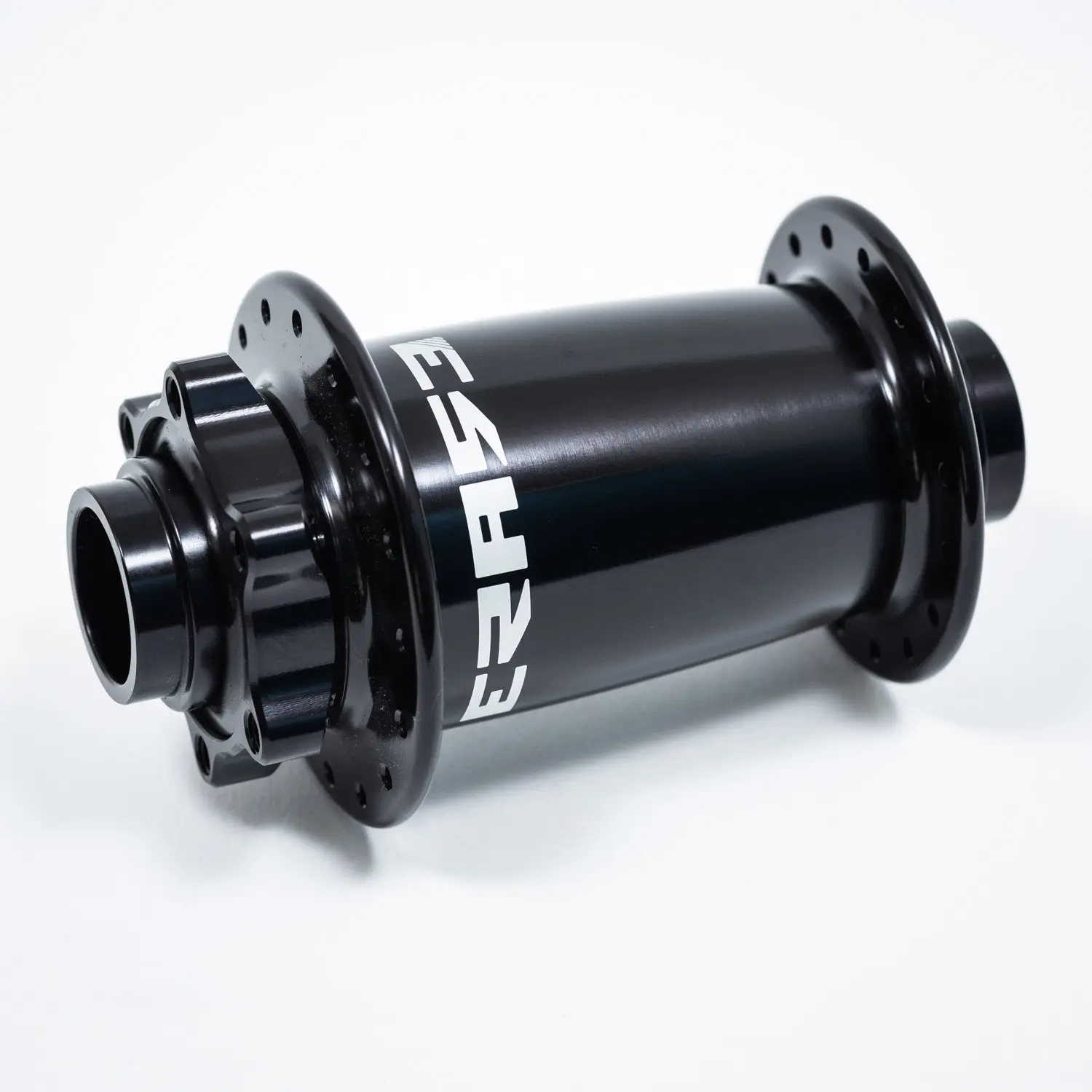

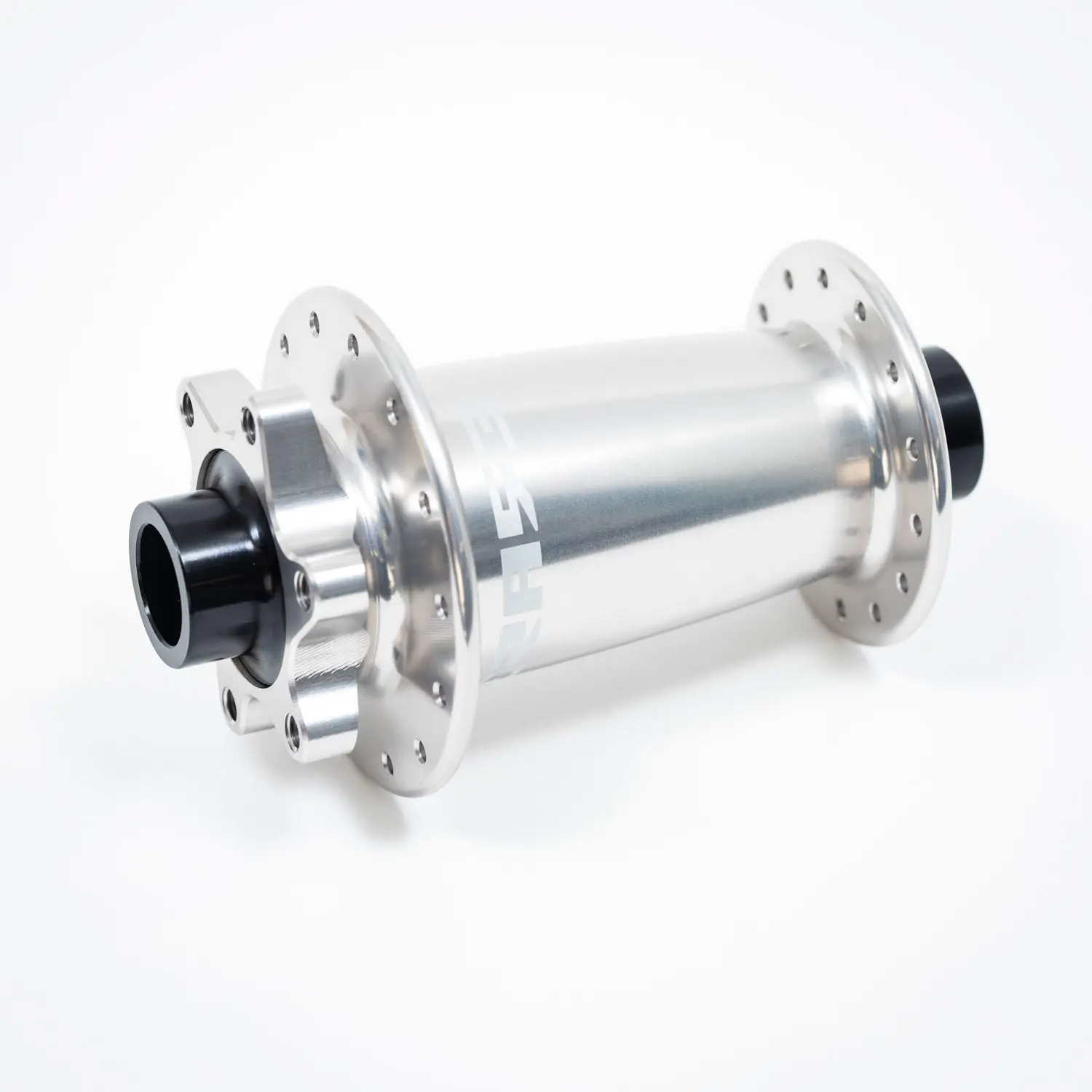

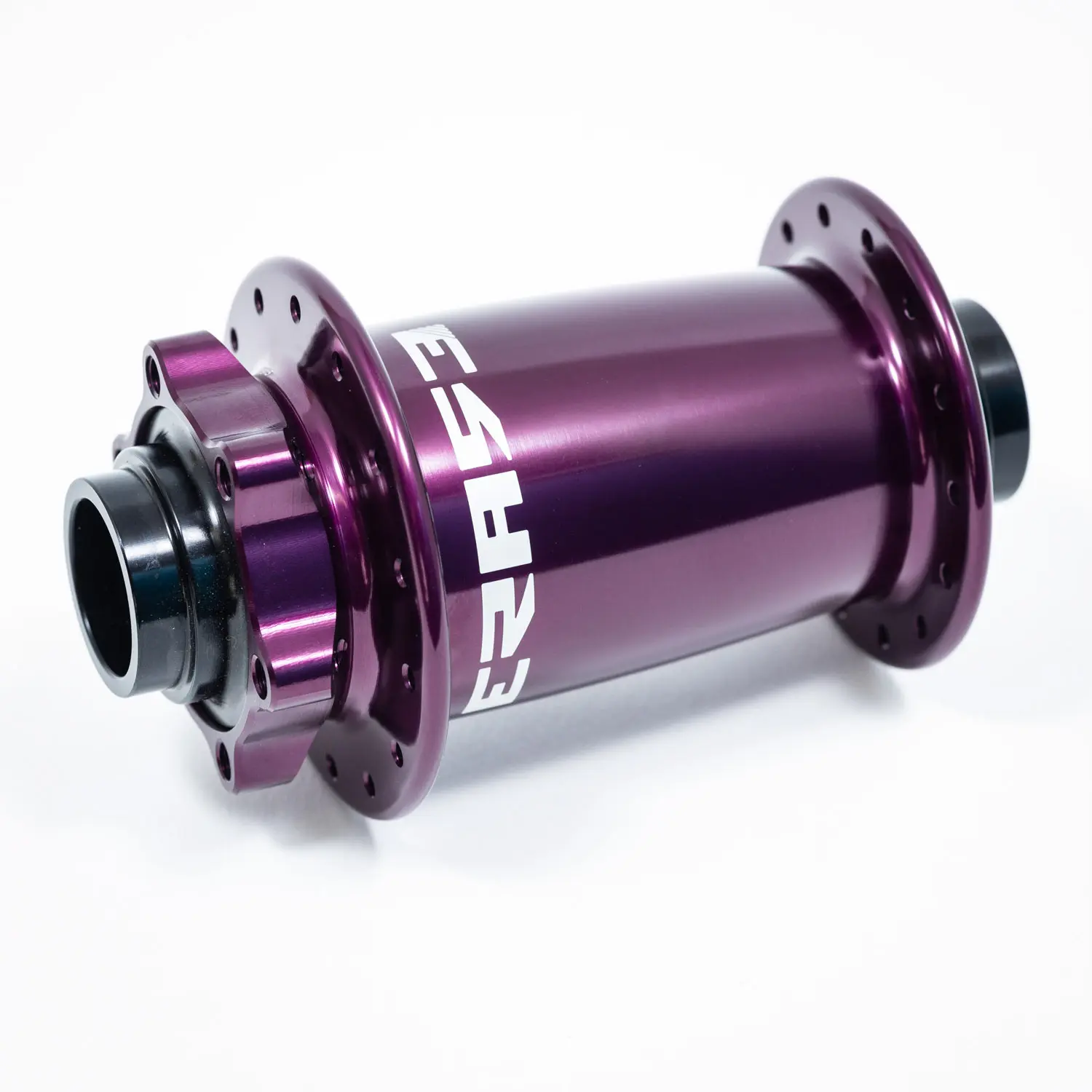

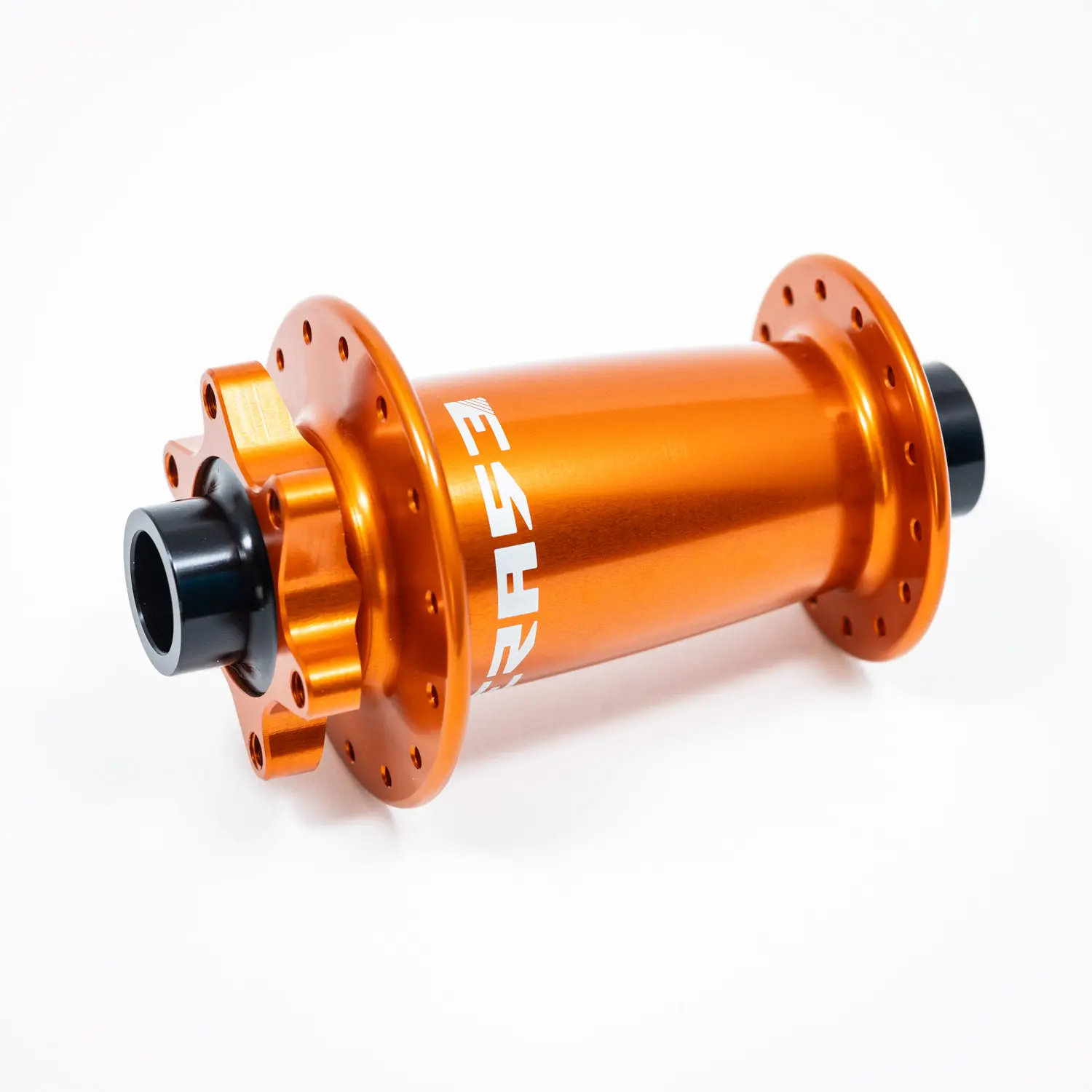

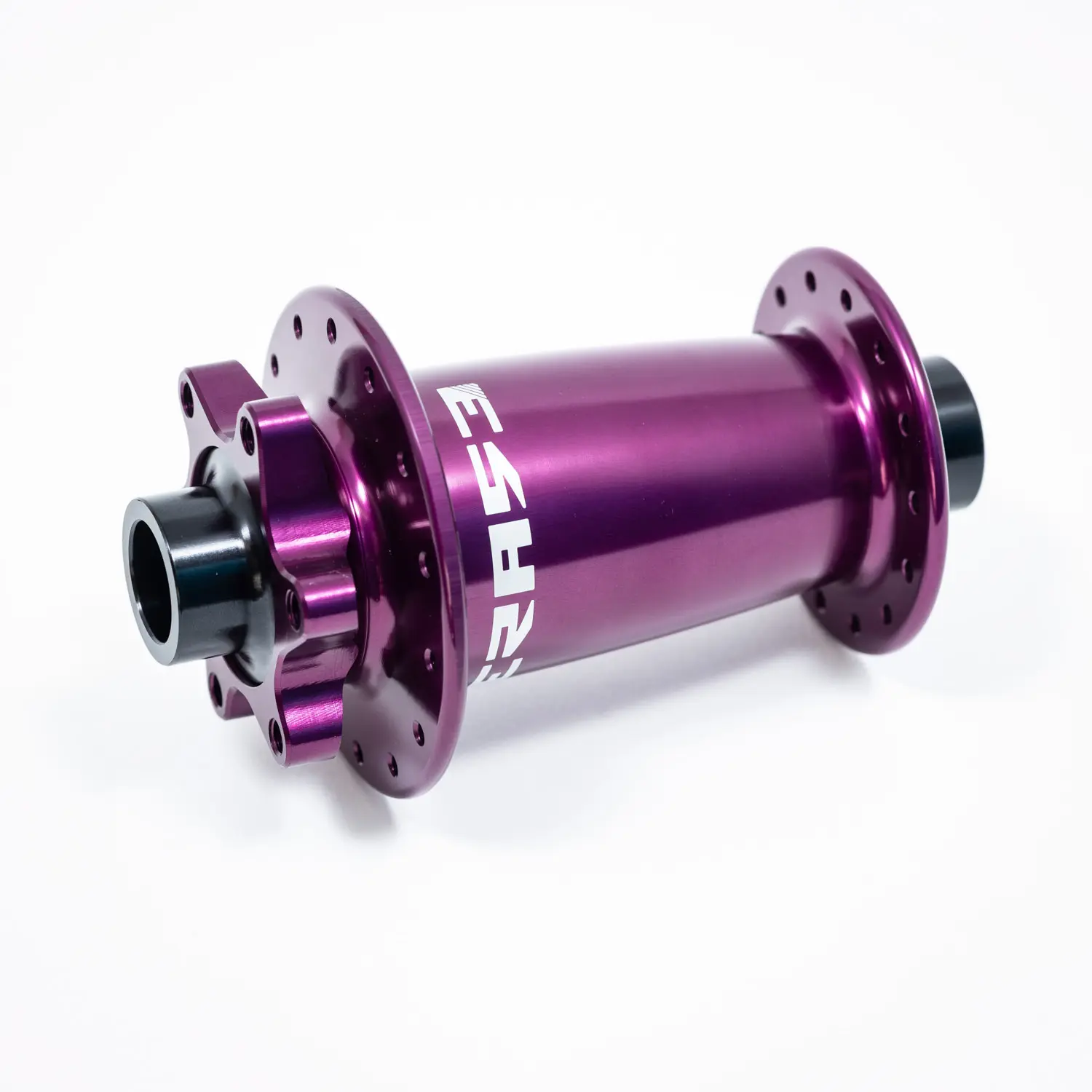

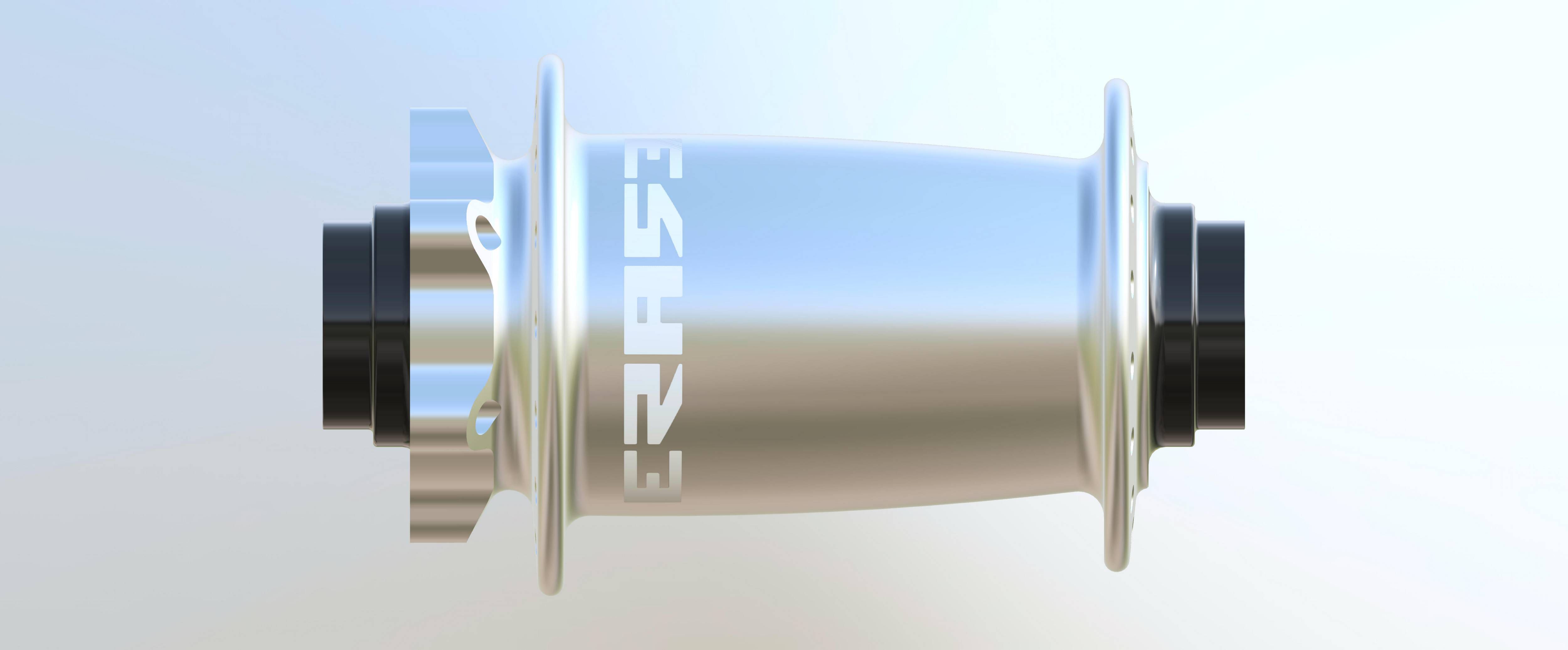

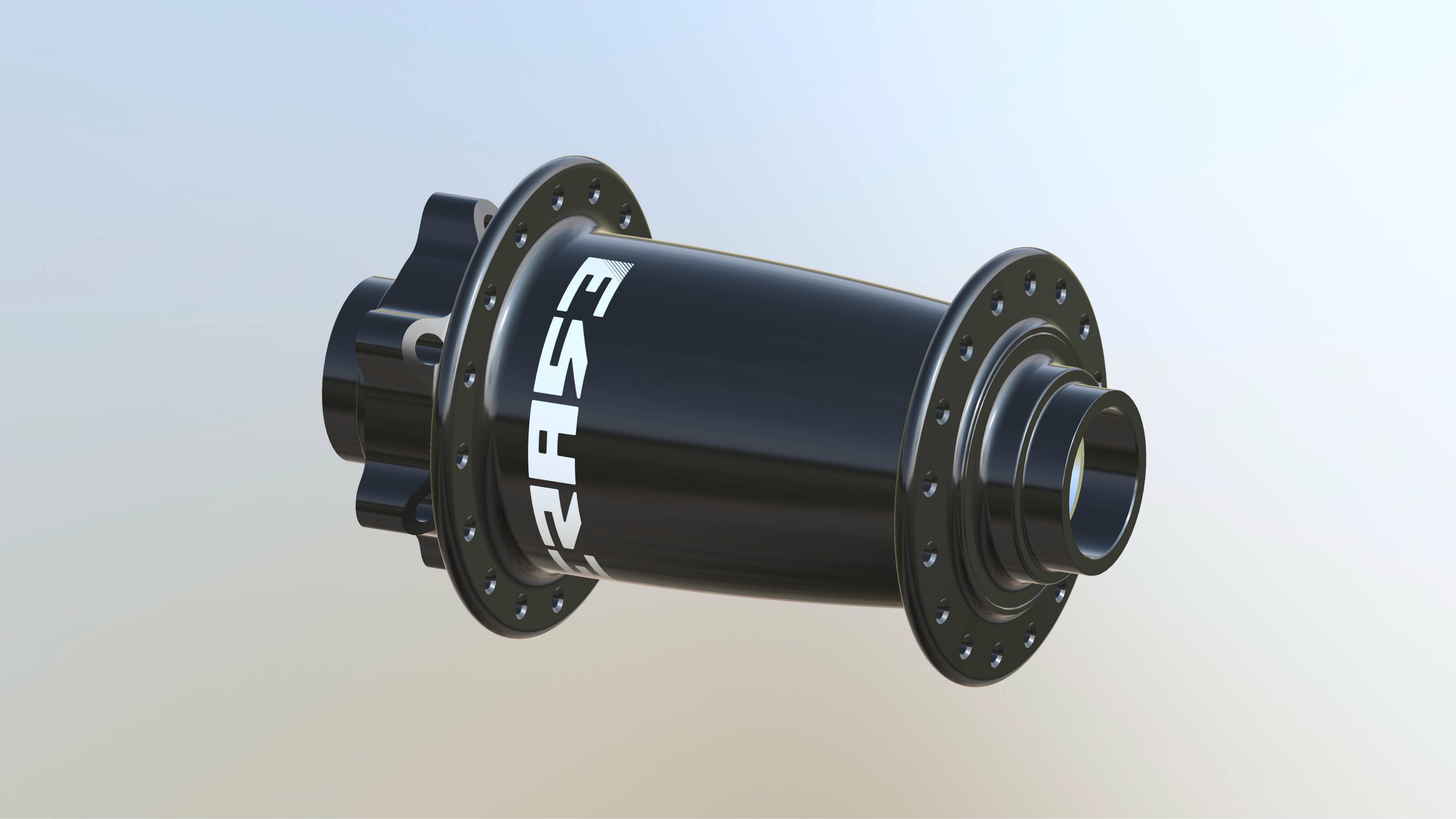

The front hubs are available in 100x15 or 110x15 (Boost).

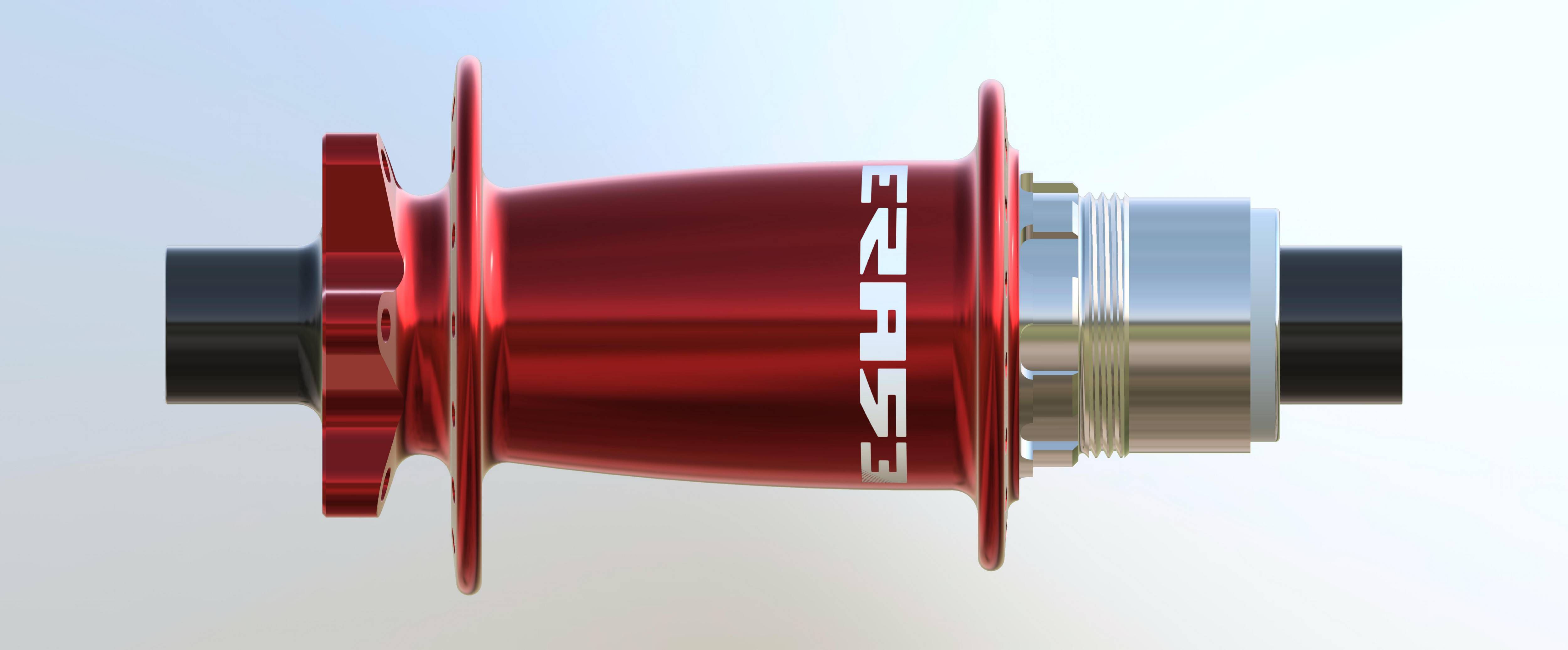

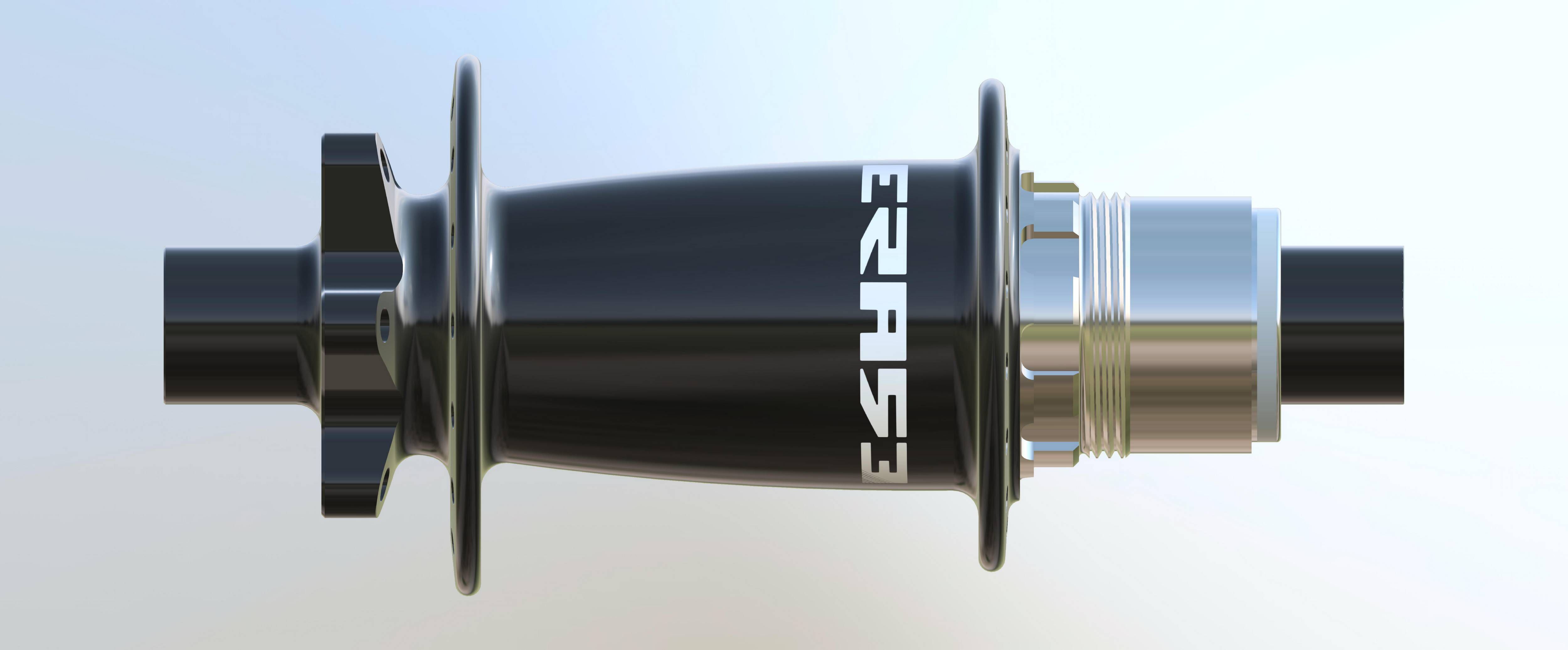

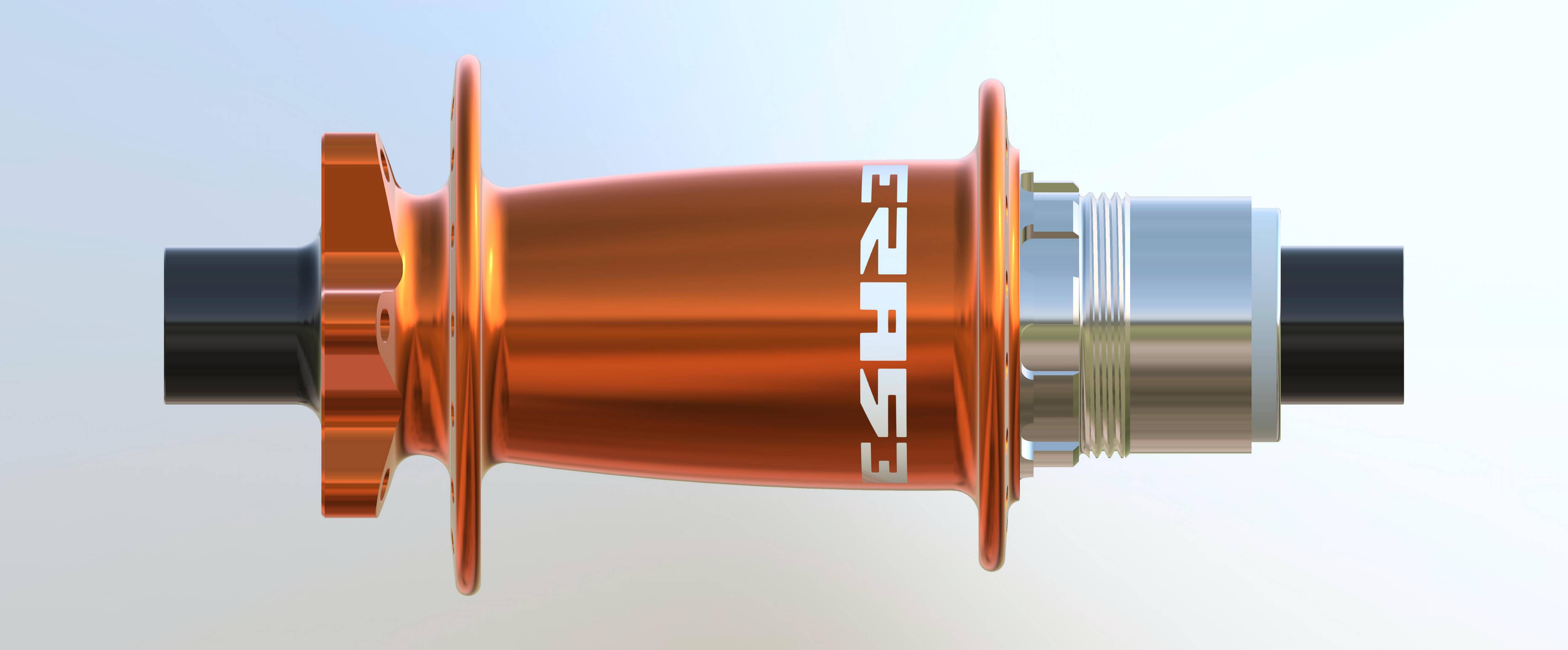

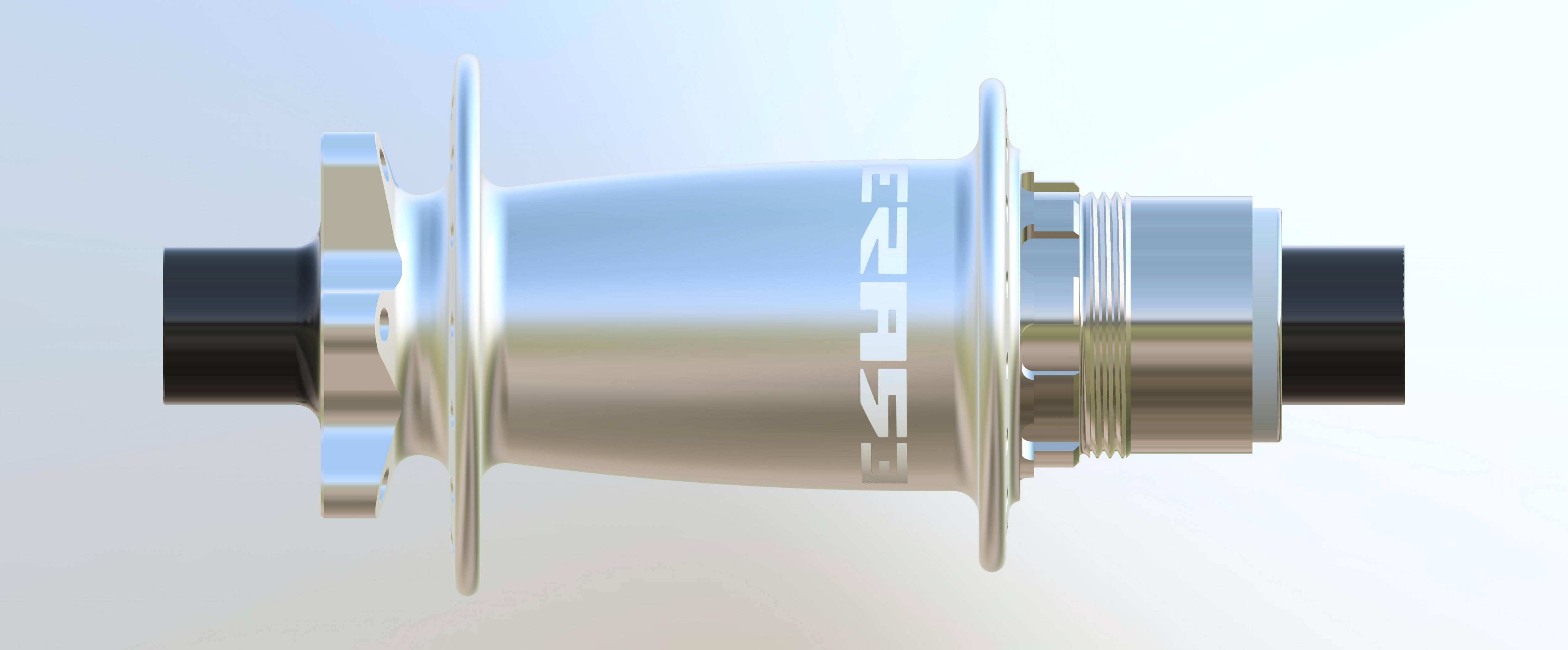

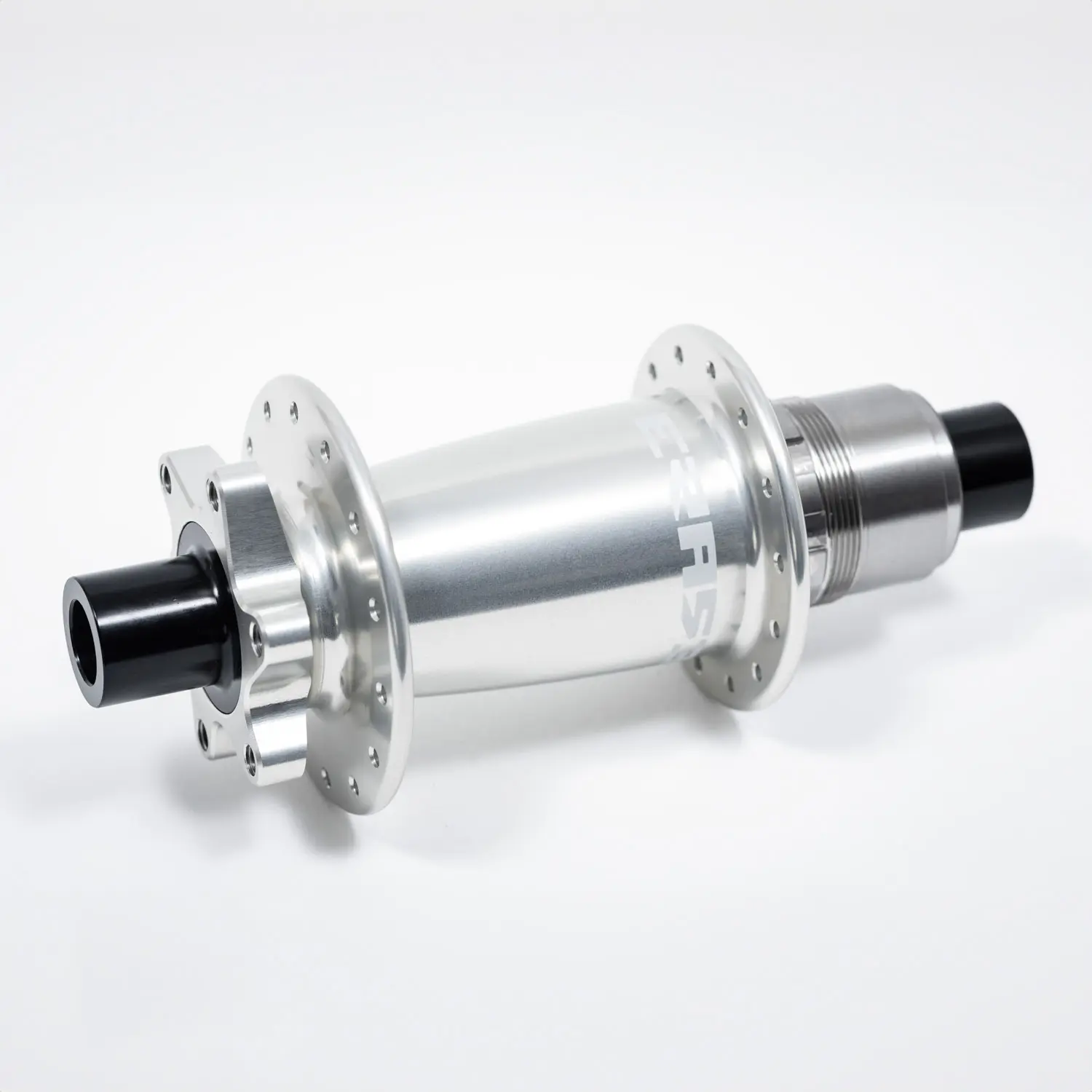

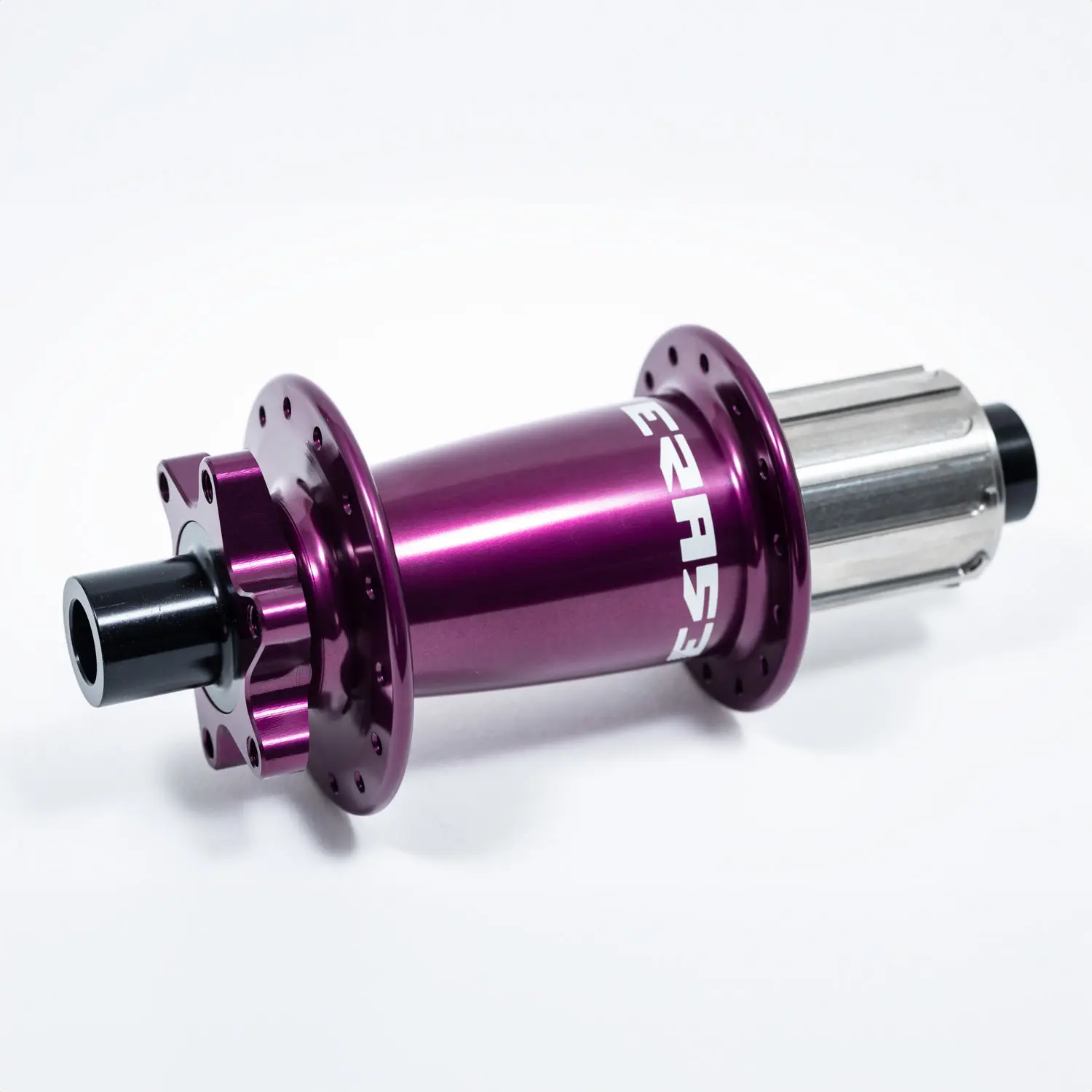

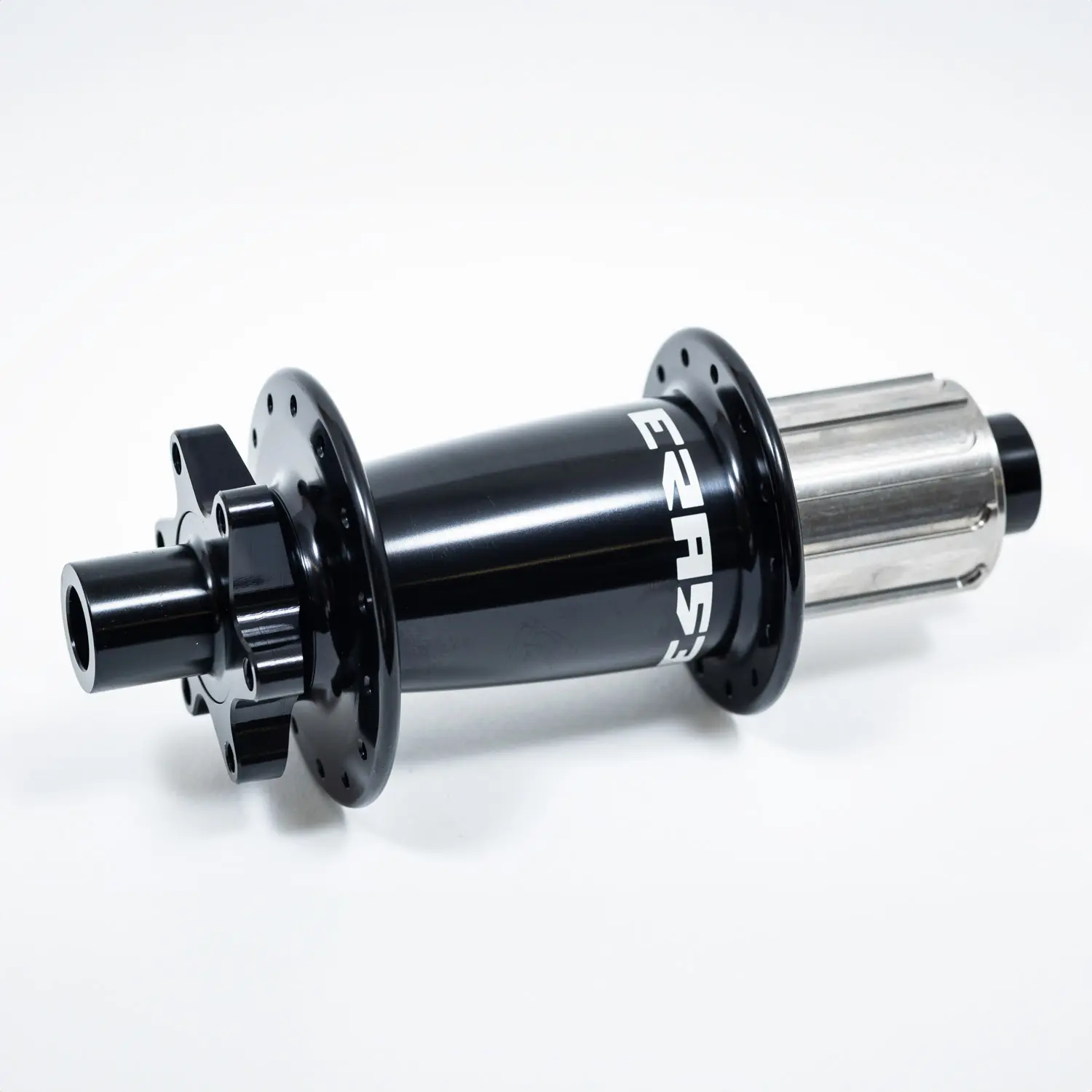

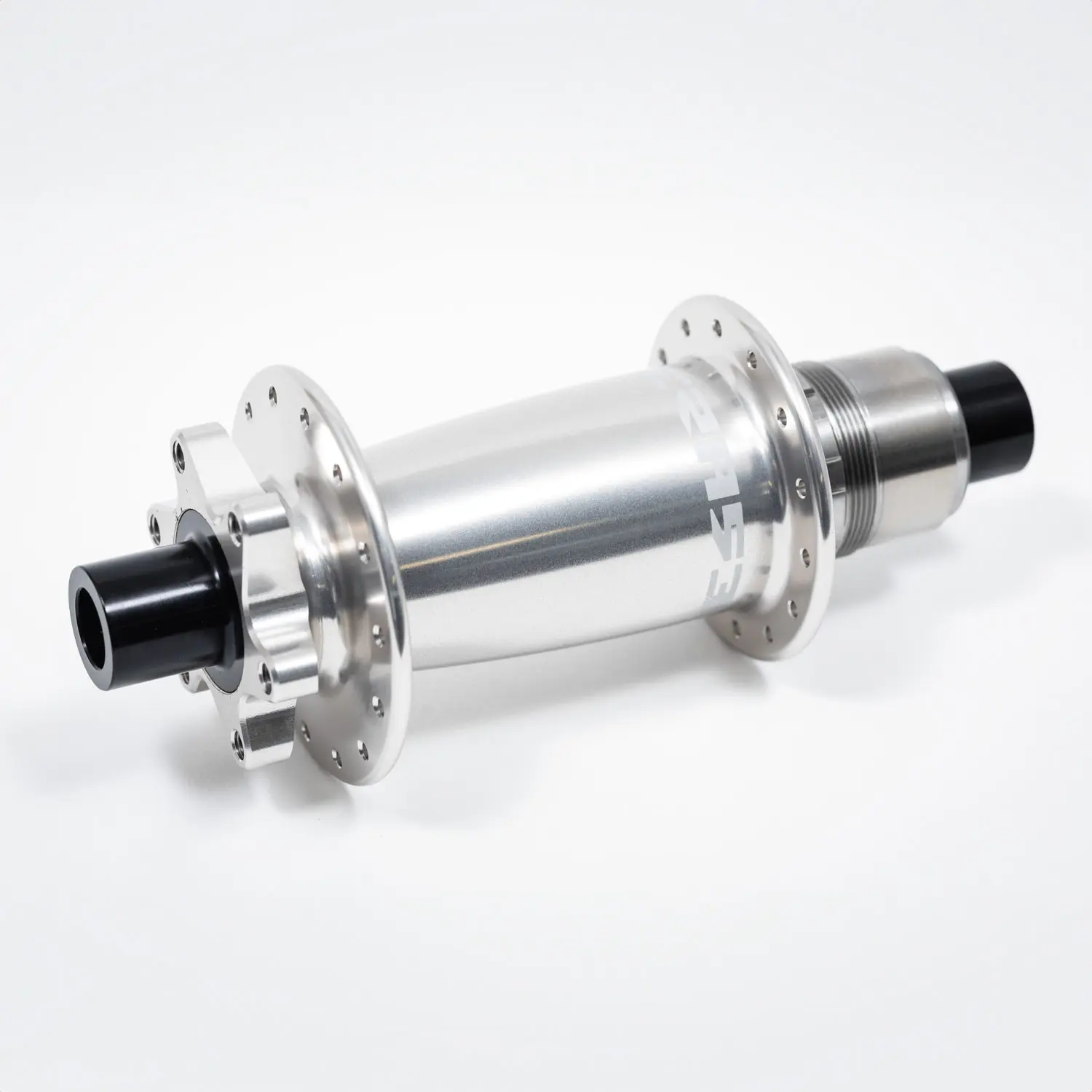

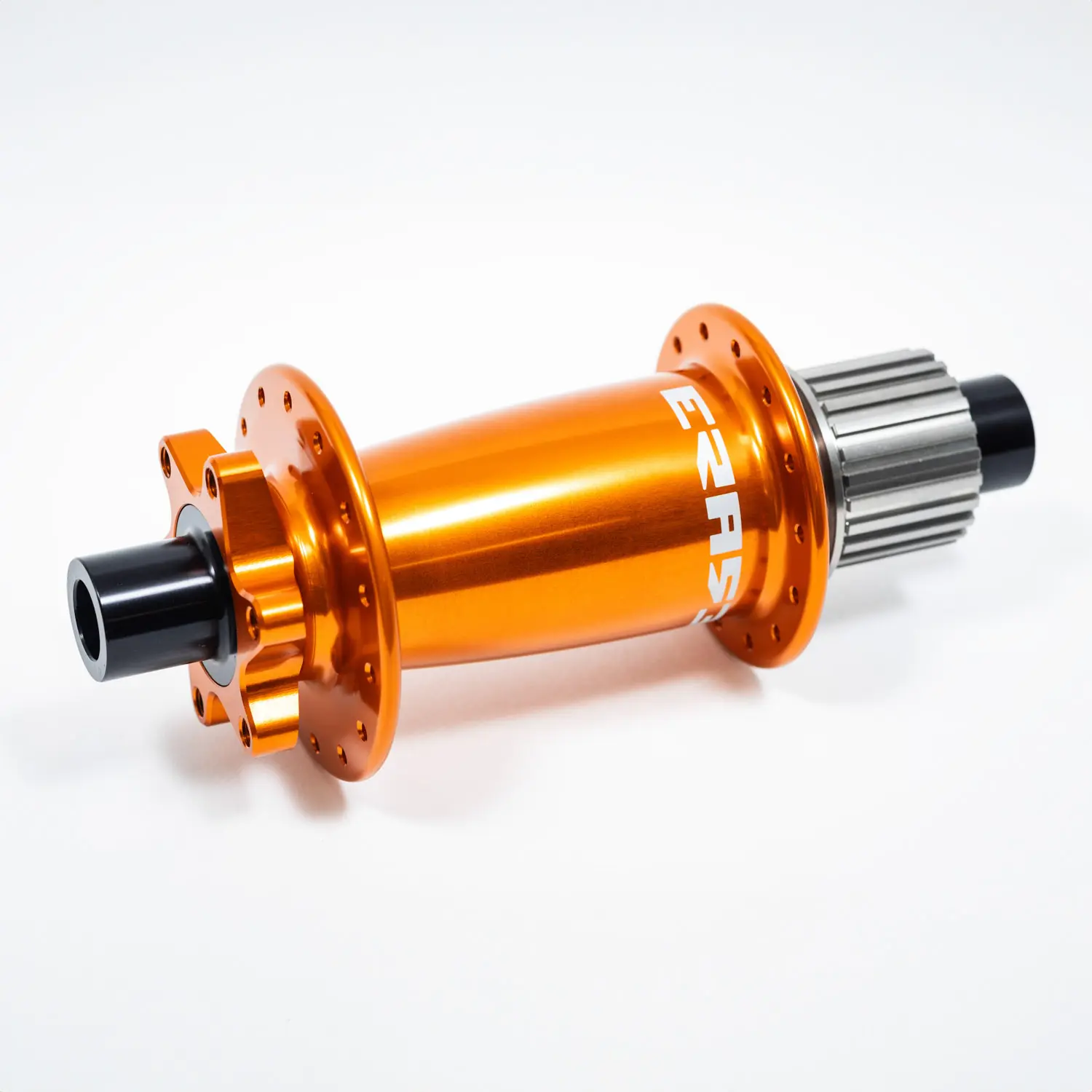

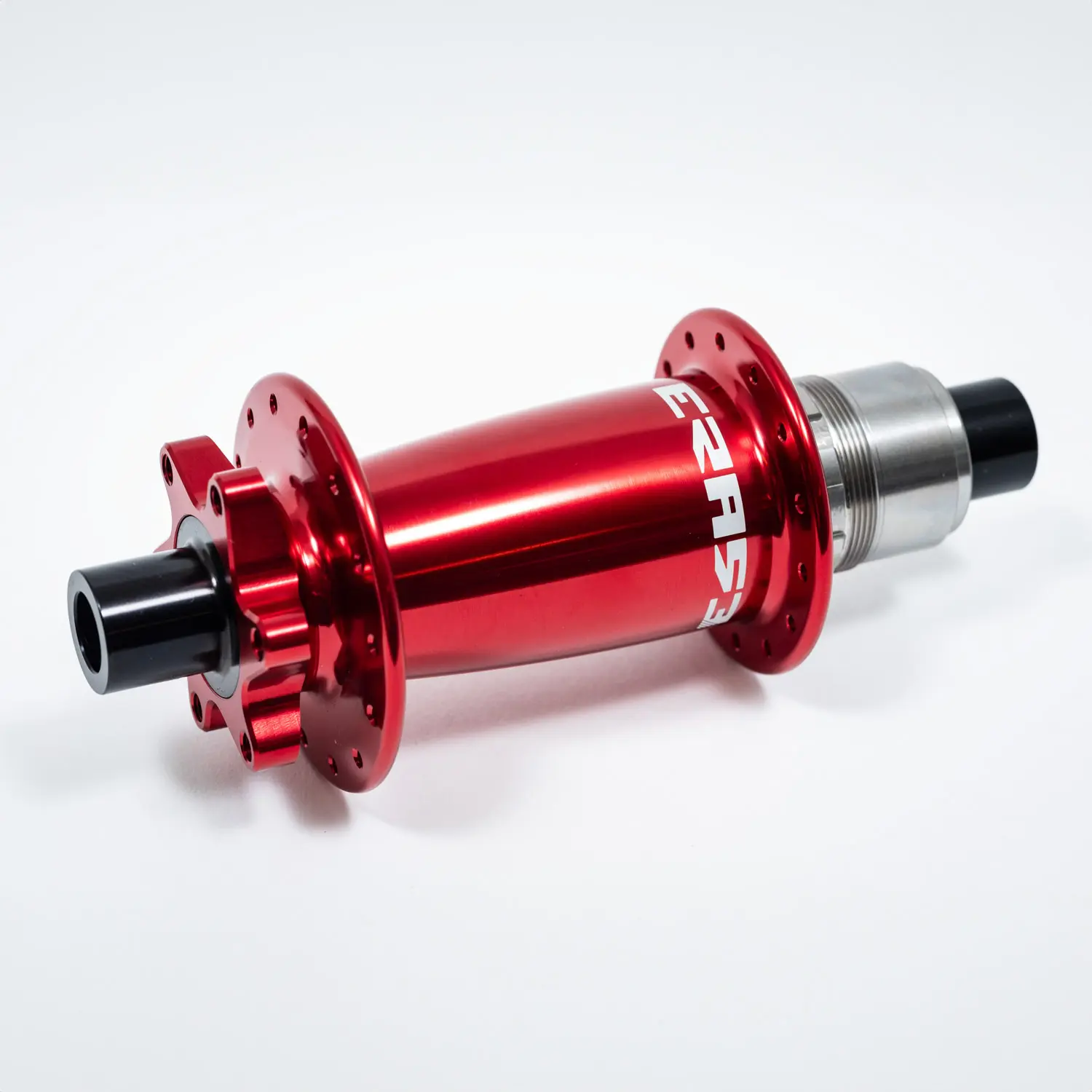

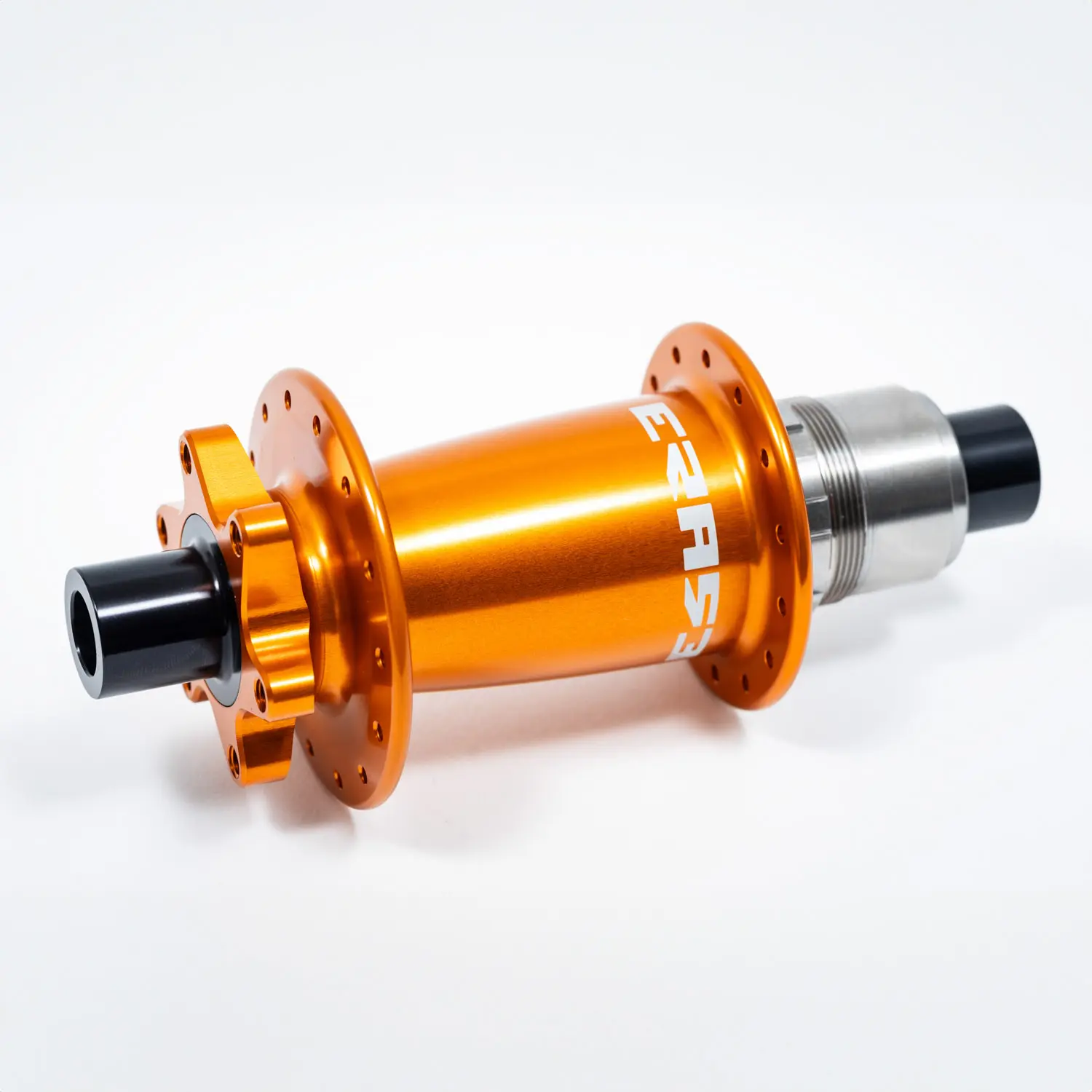

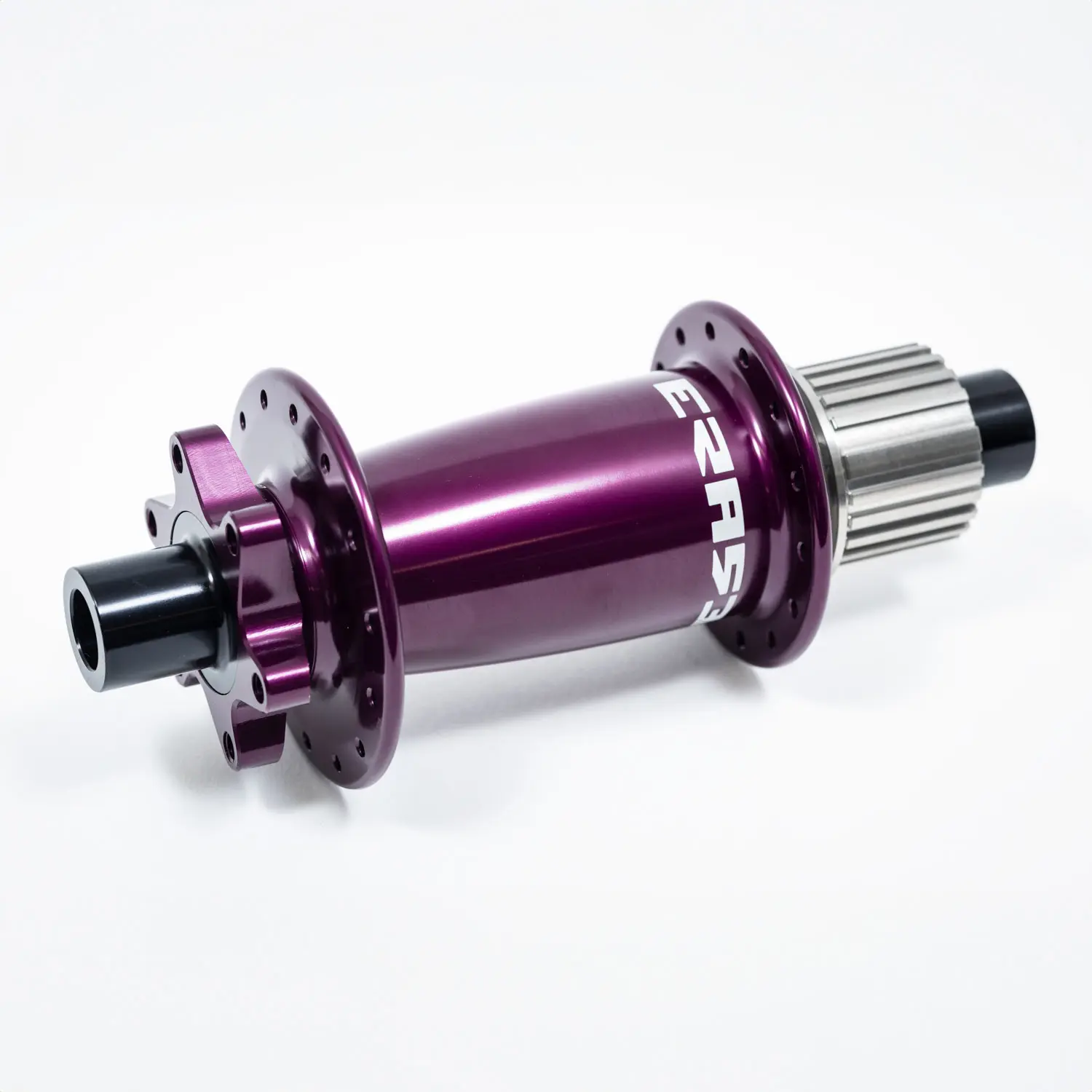

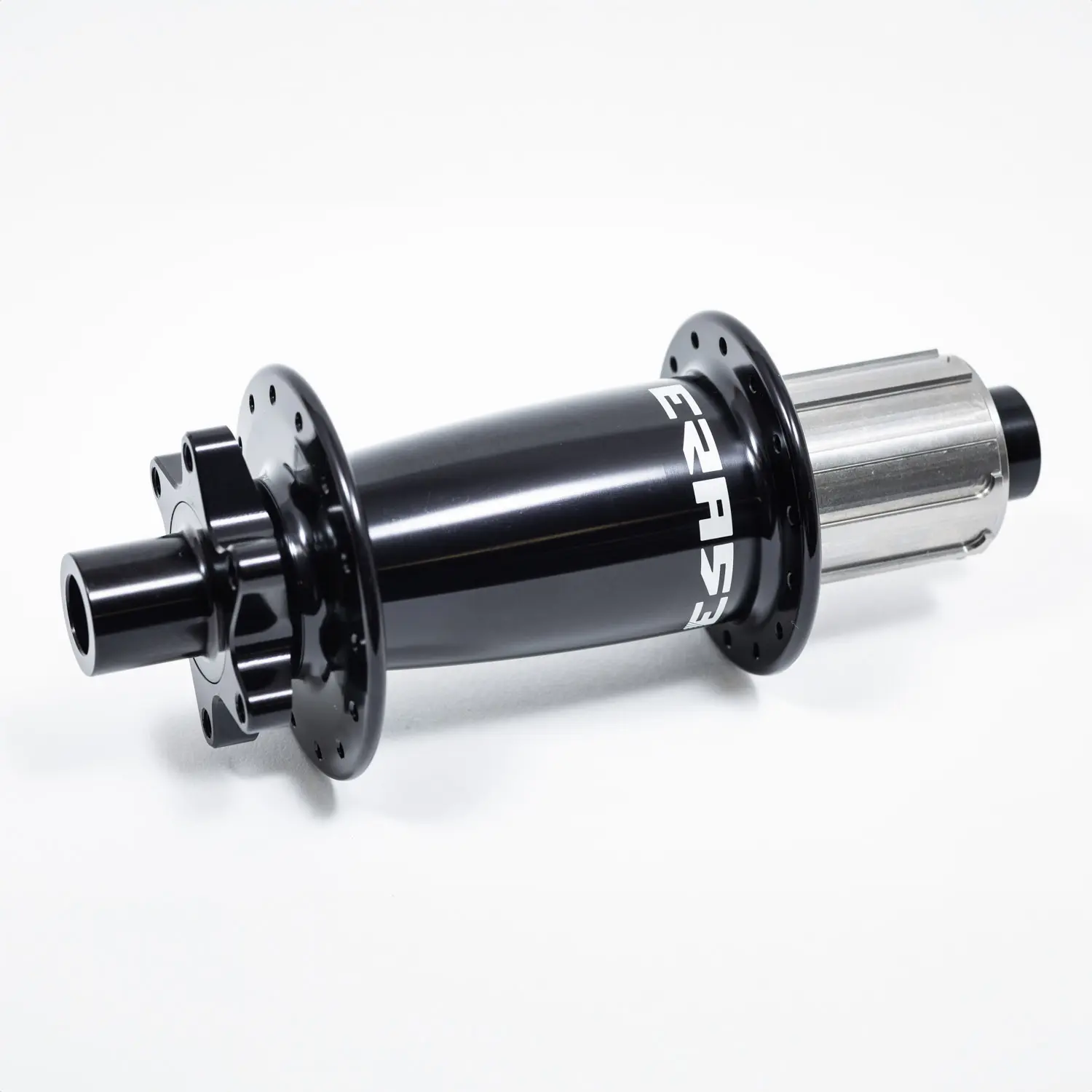

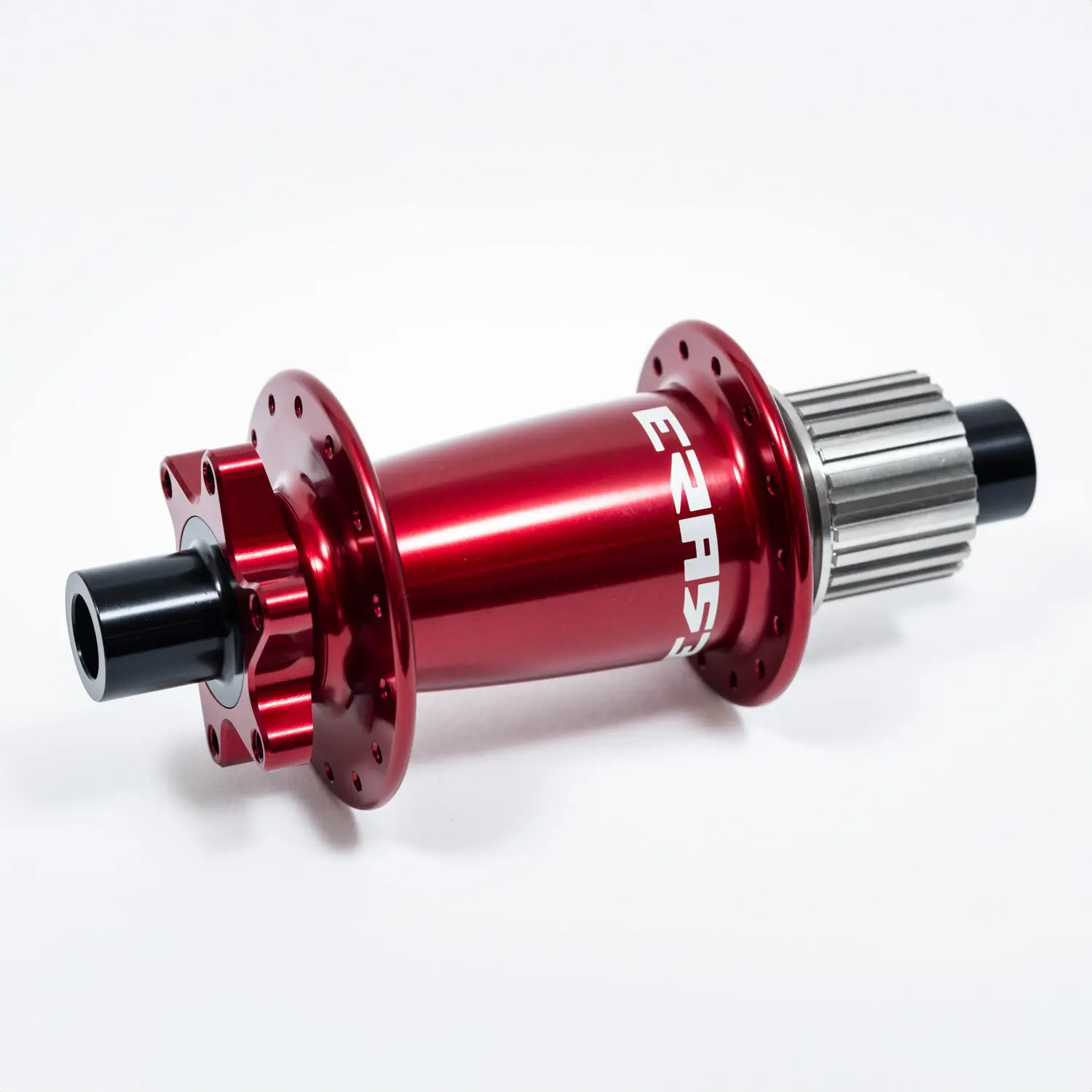

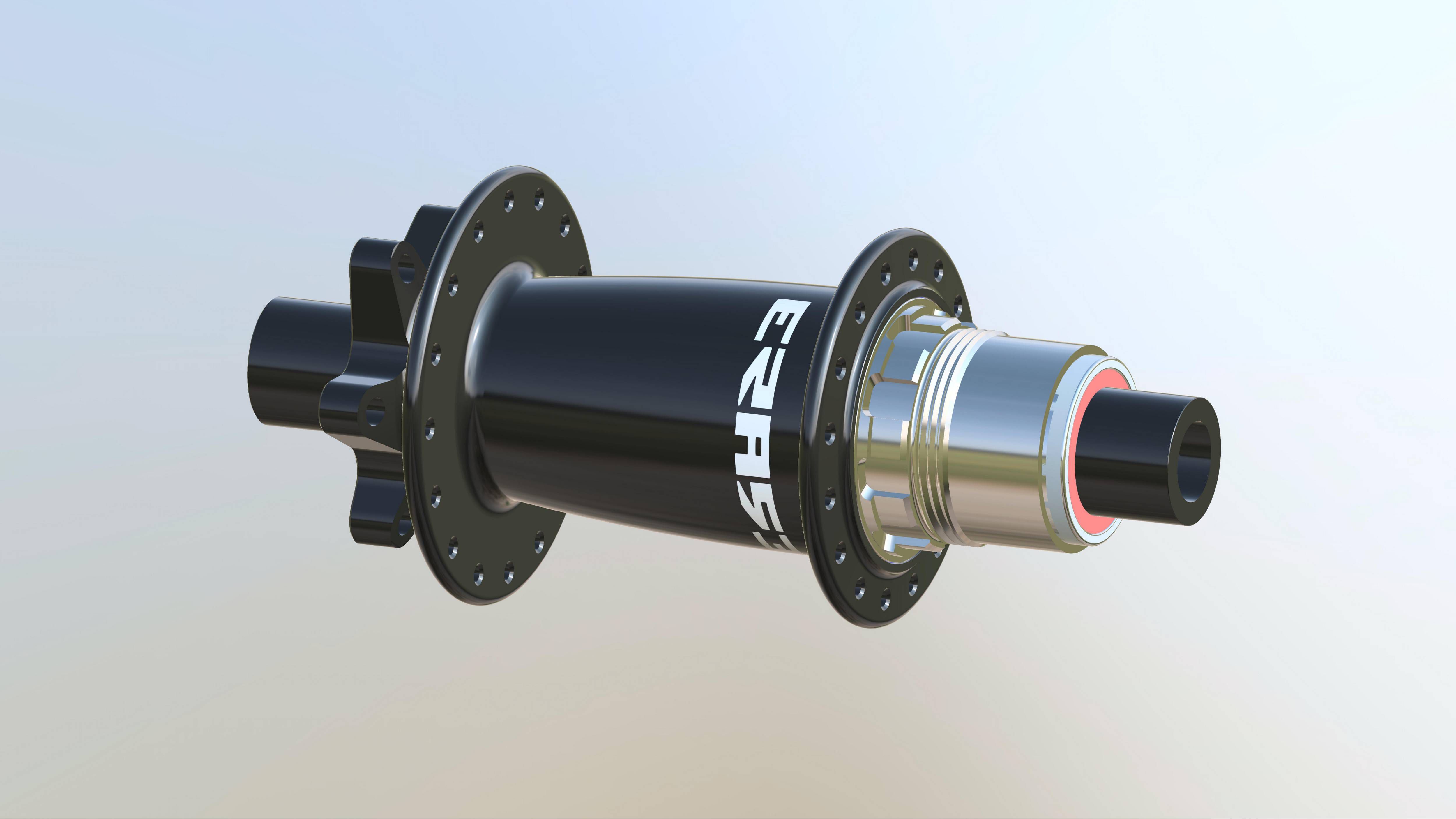

The rear hubs are available in 142x12 or 148x12 (Boost).

Front : 145gr
Rear : 237gr

28 or 32 spoke holes.

The bearings are from Enduro Bearings. We work with that company because it is the only one to produce bicycle hubs specific angular bearings.

In standard radial bearings, only 3 or 4 balls make contact during the load, at any given time. In angular contact bearings, all balls are engaged and spread the force over a larger surface aera, to decrease friction and minimize wear.

angular-contact-example

We only use 6900 series bearings on our MTB hubs so they may last as  long as your wheels.

Front : 2x 6903
Rear : 4x 6902

Enduro angular bearings are designed for hubs with play adjustment like ours. This system allows you to tighten the hubs just enough to remove the play without putting any stress on the bearings. It will make the bearings smoother and more durable.

We use Grade 5 titanium to make the freewheel. Why? Because we didn't want to see anymore sprocket marks on the freehub and wanted to have an indestructible freewheel.

The Ratchet Technology is one of the most reliable system because 100% of the system surface is working when you put power on your pedals.

The hub geometry is a very important aspect of a hub design. It defines the spokes length, but more importantly the wheel lateral stiffness. Further is the flange from the hub center, higher is the lateral stifness. Therefore, the wheel will be nervous and have accurate trajectories.

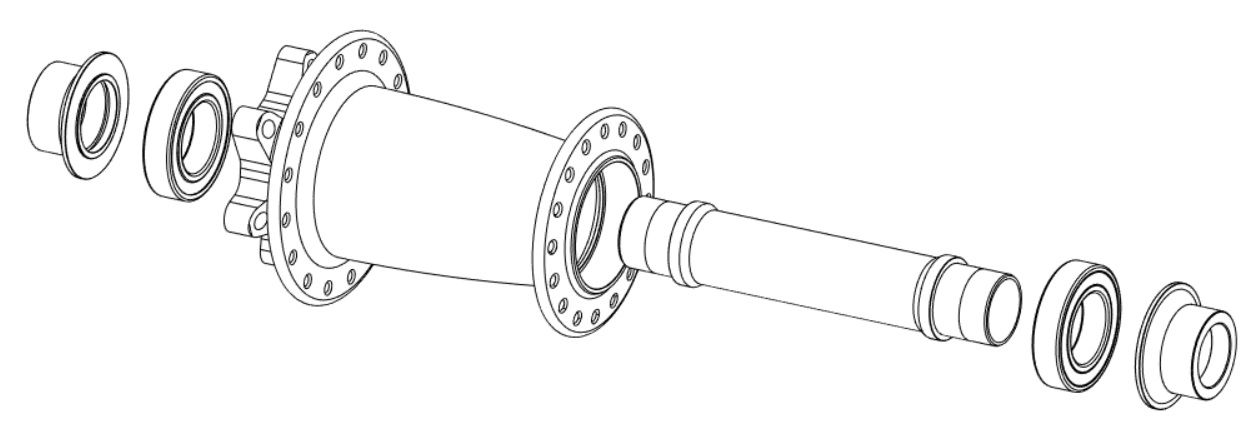

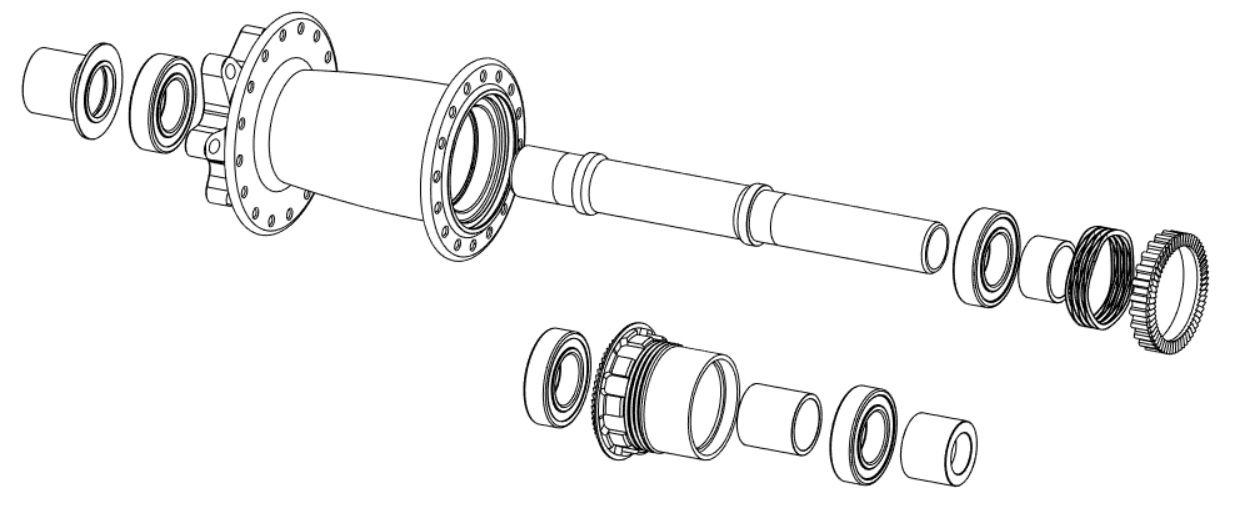

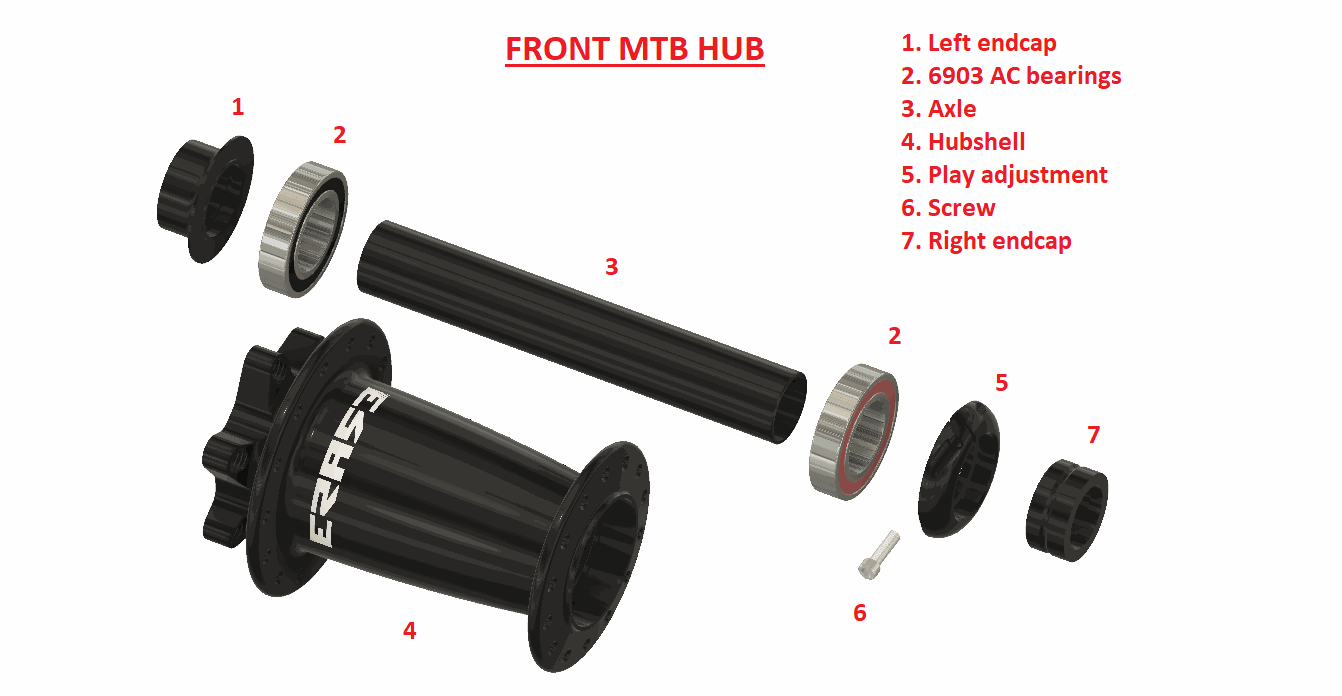

- You can open our hubs by hand, just by pulling the end-caps off.
- You can pull the axle off through the bearings without needing to remove one of them.
- When you pull the freewheel off the rear hub, every pieces stay in place.
- All pieces are large enough so that you'll never loose one of them, no thiny springs or little pawls.
- Since you don't need to thigh off the play adjustment piece to open the hub, you don't need to adjust it either when rebuilding it.

We didn't make any compromises and developped the hubs as we wanted it. But once the design was fixed, we searched the closest products sourcing and we are proud of this !

Aluminium : Belgium
Titanium : Belgium
Bearings : United States
Screws : Belgium
Seals ; Italy
Springs : Taiwan (for technical reasons, we are still searching an european company able to produce it)
Anodizing process : Netherlands

110€ for the front hub.

240€ for the rear hub.

Our hubs get a LIFETIME warranty.

- The warranty covers only product defaults.
- The warranty does not cover damage or failure caused by crash, misuse of the products, improper assembly or maintenance by an unauthorized dealer.
- The warranty does not cover bearings.

Only for the initial owner.
